Clearance fit is one of the three basic fit types, and the most common type for parts that need to rotate, slide, or assemble without force. A clearance fit guarantees a gap between the shaft and hole across the full tolerance range. However, the amount of that gap still has to be chosen deliberately. In this guide, we will explain exactly what a clearance fit is, how it works, the different types available, and how to apply it correctly in your next DFM project.
What Is a Clearance Fit?

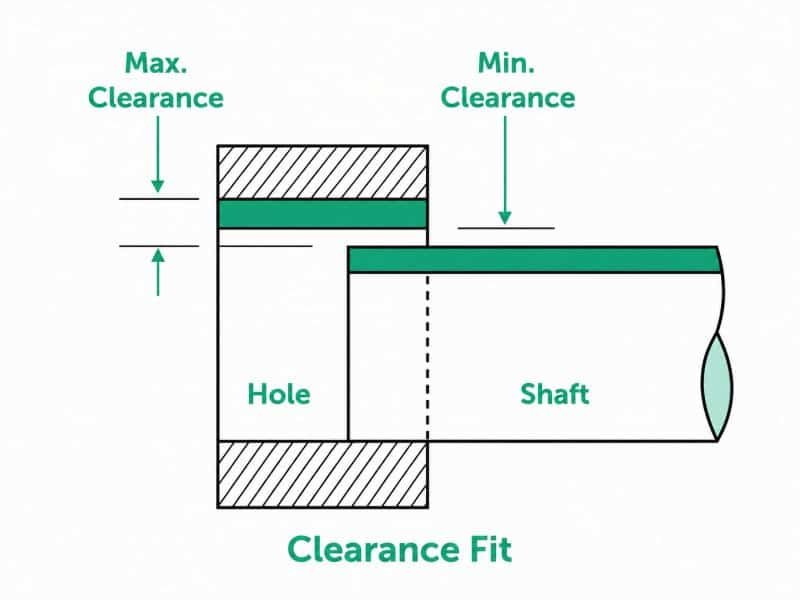

A clearance fit is a type of mechanical fit in which there is always a gap or clearance between two mating parts, such as a shaft and a hole, even at their tightest possible dimensional limits. In other words, no matter how the manufacturing tolerances stack up within their specified range, the minimum hole size is always larger than the maximum shaft size.
The size of this clearance can range from a few micrometers to several millimeters, depending on the function the fit must perform. It also allows the two parts to move relative to one another, like sliding, rotating, or simply assembling and disassembling without force. Clearance fits are commonly used when free movement, easy assembly, or thermal expansion allowance is more important.
Types of Clearance Fits
Not all clearance fits are created equal. Depending on how much gap is designed in, clearance fits generally fall into three categories:
Loose Running Fit
Designed for maximum clearance, this fit is used where free movement is essential, and precision alignment is not critical. For example, in agricultural machinery, low-speed conveyor systems, or components exposed to dirt, debris, or thermal expansion that need extra room to move.
Free Running Fit
A moderate clearance that allows smooth rotation or sliding at higher speeds while still maintaining reasonable alignment. This is commonly used for shafts running in plain bearings at moderate to high speed, where some lubrication film thickness needs to be accommodated.
Close Running / Sliding Fit
It is the tightest of the clearance fits and can offer minimal but still guaranteed clearance. This type is used where accurate location and smooth movement are both required, such as in precision slides or gears on shafts that need to slide axially.
These three types differ primarily in the amount of clearance they provide, which directly affects the freedom of movement, positional accuracy, and operating conditions of the assembly.
Clearance Fit vs Transition Fit vs Interference Fit
The key difference between the three types is the relationship between hole and shaft size:
| Fit Type | Hole vs Shaft | Result | Typical Use |
|---|---|---|---|
| Clearance Fit | Hole always larger than shaft | Gap guaranteed at every tolerance combination | Rotating, sliding, or easily assembled parts |
| Transition Fit | Tolerance zones overlap | May result in slight clearance or slight interference | Accurate, low-wobble positioning without press force |
| Interference Fit | Shaft always larger than hole | Overlap guaranteed at every tolerance combination | Permanent joints without fasteners |
An incorrect fit selection can result in costly assembly and performance issues. For example, excessive interference may prevent assembly, while excessive clearance can cause unwanted movement or premature wear.
How to Choose the Right Clearance Fit
Because a clearance fit is intended to accommodate relative motion, the deciding factors are different from a transition or interference fit.
Type of Relative Motion
Loose running fits are suitable for parts that only need to slide into place occasionally. Free running fits are better suited to continuously rotating shafts, where additional clearance can accommodate a lubricant film. Close running fits provide tighter control for components that must remain accurately located while still allowing axial movement.
Rotational Speed and Lubrication
Faster rotation and oil-lubricated interfaces generally need more clearance than a slow-moving and dry-running pin, since the lubricant film itself takes up space in the gap.
Precision and Vibration Requirements
The amount of clearance directly affects the amount of relative movement between mating parts. Applications with strict requirements for vibration control or positional accuracy generally require tighter clearance limits, although tighter tolerances may increase machining costs.
Duty Cycle and Wear
For assemblies subject to extended operating cycles, the clearance should account for gradual dimensional changes caused by surface wear. Starting with excessive clearance can result in greater play and reduced performance as the mating surfaces wear over time.
Once the functional requirements are established, you can select the appropriate IT grade and fit class from the ISO 286 fit tables to meet the required clearance.
Clearance Fit Tolerances and Standards
Clearance fits are defined by internationally recognized standards, with ISO 286 being one of the most widely used systems. For example, a common clearance fit designation is H7/g6:
- H7 describes the hole tolerance. The letter H indicates that the lower limit is at the basic size, while IT7 indicates the tolerance grade.
- g6 describes the shaft tolerance. The letter g indicates a negative deviation from the basic size, while IT6 indicates a tighter precision grade than the hole.
Together, H7/g6 provides a controlled clearance suitable for applications that require precise sliding or rotational movement. Other common clearance fit designations include H7/f7, which is looser and suitable for general sliding, and H11/c11, which is very loose and suitable for low-precision applications.
Using standardized fit systems helps ensure consistent dimensional relationships between mating parts, improves interchangeability, and simplifies inspection requirements. When you communicate your requirements to the manufacturer, specifying a recognized fit designation also provides a clear and consistent way to communicate the required fit across different production batches and manufacturing sources.
Advantages and Limitations of Clearance Fits
Clearance fits offer several practical advantages for assemblies that require movement or easy installation, but they also have limitations that should be considered when selecting the appropriate fit.
Advantages
- Easy assembly and disassembly: Parts can be connected without force, which speeds up production and simplifies maintenance or replacement.
- Allows relative motion: It is essential for rotating, sliding, or reciprocating components.
- Accommodates thermal expansion: The internal gap provides room for parts to expand with heat without binding.
- Reduces wear from over-constraint: Properly lubricated clearance fits reduce friction and heat buildup compared to overly tight fits.
- Cost-effective manufacturing: Clearance fits generally tolerate looser and cheaper tolerances than interference or transition fits.
Limitations
- Less positional accuracy: This gap enables movement but also can cause vibrations, wobble, or backlash, which can be problematic in precision assemblies.
- Potential for vibration or noise: Excess clearance in dynamic assemblies can lead to rattling or knocking under load.
- Not suitable for load-bearing structural joints: Clearance fits do not provide the mechanical locking strength of interference fits, so they typically require additional fasteners, keys, or retaining features.
- Loss of fit over time: Repeated movement and surface wear can gradually increase the clearance between mating parts, resulting in excessive play, maintenance, or replacement.
Clearance Fit in DFM
From a Design for Manufacturability (DFM) perspective, clearance fit selection can directly affect cost, lead time, and part quality. You should evaluate the following factors early based on the part’s intended operating conditions:
1. Is the surface finish appropriate for the selected fit?
In a close sliding fit especially, a rougher-than-expected surface finish can reduce the designed clearance and change how the part actually behaves once assembled.
Let Us Help You!
2. Will the clearance still make sense in the working material?
Mating materials can respond differently to temperature changes, wear, and lubrication. Plastic and metal components, for example, may expand or wear at different rates, causing the effective clearance to change during service.
3. Does the assembly method need assisted alignment?
A close clearance fit may require a lead-in chamfer or relieved edge to guide the mating parts into position during assembly. This is particularly important for automated or high-volume production, where limited alignment can increase the risk of misalignment and assembly rejection.
Evaluating these factors during the DFM stage can help identify potential binding, excessive movement, or premature wear before parts enter production.
Common Applications of Clearance Fits
Clearance fits appear throughout nearly every industry that relies on moving mechanical components:
- Rotating shafts and bushings in motors, pumps, and gearboxes
- Piston and cylinder assemblies in engines, pneumatic actuators, and hydraulic cylinders
- Bolt and clearance hole assemblies in general fastened structures
- Sliding guide pins and bushings in molds, jigs, and fixtures
- Bearing housings where the outer race needs a controlled sliding fit for assembly and thermal accommodation
- Robotics and automation components, such as linear slides and rotary joints requiring smooth, low-friction motion
- Consumer product mechanisms, including hinges, telescoping tubes, and sliding drawers
Conslusion
Clearance fit selection involves more than simply specifying a standard fit. The resulting clearance directly affects rotational movement, sliding performance, and ease of assembly. Understanding the different types of clearance fits and the applicable standards helps ensure that the selected fit meets both functional and manufacturing requirements.
If you are not sure whether your design needs a clearance, transition, or interference fit, or if you have settled on a clearance fit but are not sure which running class fits your mechanism. Erye’s assembly solution team can review the fit against how the part actually needs to move before tooling or production begins.
