Interference fits are used in demanding mechanical applications, from rotating shafts and pressure vessels to precision instruments, because they can hold components securely without additional fasteners. However, achieving a reliable interference fit requires more than simply making one part slightly larger than the other. The fit, assembly method, and operating conditions all need to work together. This guide explains the different ways it can be assembled, and what to watch for once the part is actually in use.
What Interference Fit Means
Imagine there is a shaft that needs to go into a hole. There are three ways this pairing can be designed:
- Clearance fit: The shaft is always slightly smaller than the hole, allowing the parts to slide or rotate freely.
- Transition fit: The shaft and hole are sized very close to each other, so the fit may have a small clearance or a small amount of interference depending on the actual dimensions of the parts.
- Interference fit: The shaft is designed to always be a little larger than the hole, so the two parts overlap before they are even put together.
For example, imagine a shaft with a diameter of 10.02 mm and a hole with a diameter of 10.00 mm. Before assembly, when comparing their sizes, the shaft is 0.02 mm larger than the available space in the hole. This size difference is called interference. It is not merely a fixed size difference of 0.2 mm. The designer will set a range of dimensions for the shaft and holes to ensure that no matter which range the actual processing size falls within, the assembly will maintain a tight fit.
How Interference Fit Is Specified
Interference fit is written on a drawing as a code, like H7/p6 or H7/s6. It is just shorthand for two ranges: an allowed range of sizes for the hole, and an allowed range of sizes for the shaft. For example, a shaft around 10.02 mm and a hole around 10.00 mm. No part ever comes out exactly at that number. Real parts will fall within a small allowed range, a bit larger or smaller than the target. The interference fit sets those ranges for both the shaft and the hole.

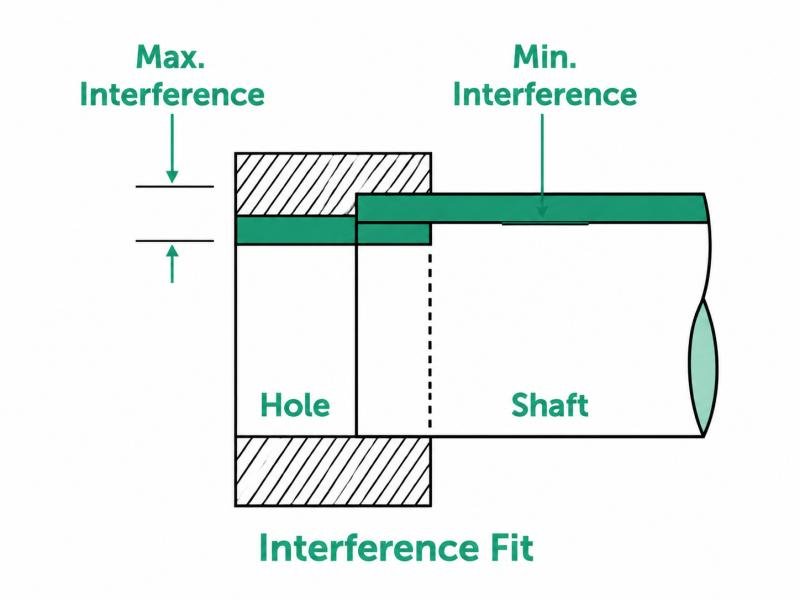

- Minimum interference: The smallest possible overlap, occurring when the hole is at its largest allowed size, and the shaft is at its smallest.
- Maximum interference: The largest possible overlap, occurring when the hole is at its smallest allowed size, and the shaft is at its largest.
A good design has to work across that whole range, not just at the ideal target size. This is why DFM considerations are important, as they help ensure the interference fit remains reliable under real manufacturing conditions.
Is Press Fit the Same as Interference Fit
The two terms get tangled because press fit is the most common way to realize an interference fit, so people use these two terms interchangeably.
Press fit refers to pushing the shaft into the hole with mechanical force at room temperature. It is fast and doesn’t need special equipment, and works well for most everyday interference amounts. But it is not the only option. When the interference is large, or the parts are delicate, or a production line needs a more repeatable process, other assembly methods may be preferred.
Why the Distinction Matters for Your Project
When something goes wrong with an interference-fitted joint, it is important to know whether the problem is with the joint itself or the way it was put together.
If the interference fit specification itself is wrong, no matter what assembly method is used, the parts cannot be installed properly. If the interference fit is too little, the joint works loose in service. If it is too much, parts crack or distort during assembly, whether they’re pressed, heated, or cooled together.
If the specification is right but the assembly method is not suited to it, you’ll usually see parts show up as excessive press force, damaged surfaces, or results that vary from batch to batch, even though nothing on the drawing was actually wrong.
Understanding the difference between the fit specification and the assembly method can help identify the root cause of assembly problems more efficiently.
Other Methods Used to Create an Interference Fit
Shrink Fit
Shrink fit uses thermal expansion and contraction to create the required interference between mating components. The hole is heated and expands. So the shaft is inserted with little or no force, and interference develops as the outer part cools back to ambient temperature. This process is suited to larger interference values and bulkier parts, where mechanical force would risk damaging the components.
Expansion Fit
Expansion fit relies on thermal contraction to temporarily reduce the shaft diameter and create the required clearance for assembly. The shaft is cooled so it contracts to a smaller size, then dropped into the hole before it warms back up and expands into place. This method is suited to smaller, precision, or heat-sensitive components where added stress from heating isn’t an option.
Hydraulic/oil-injection Fit
Hydraulic/oil-injection fit uses pressurized fluid to reduce friction between mating surfaces and assist the assembly of interference-fit components. Pressurized oil is injected at the interface to temporarily expand the bore. This method is suited to large-diameter or tapered interference fits, where mechanical or thermal methods aren’t practical to apply.
Choosing among these is not just about the magnitude of interference. It also depends on part size, material sensitivity to heat or cold, and how repeatable the process needs to be in production.
Design Considerations for Interference Fit
Interference Loss at Speed
In high-speed rotating assemblies, such as rotors or turbine discs, centrifugal forces can cause the outer component to expand slightly, reducing the effective interference between the shaft and hole. A fit that appears secure at rest may become insufficient during operation. Therefore, interference fits for rotating parts should be evaluated based on actual operating conditions, consider factors such as rotational speed, material properties, component dimensions, and thermal effects to ensure adequate retention force throughout the service life.
Fretting and Micro-motion
Vibration and cyclic loading can cause small relative movements at the interface of an interference fit. Over time, this can cause fretting wear at the interface, gradually reducing the effective interference and the joint’s holding capacity.
Stress Concentration at the Edges
The transition zone at the ends of an interference-fitted joint often has elevated stress compared to the middle of the contact length, which matters for fatigue-sensitive applications and can influence whether a chamfer or relief feature is needed.
Interference on Paper vs Reality
If a part is not perfectly round, the diameter measured at one point cannot represent the whole part, so the actual contact between shaft and hole varies around the circumference instead of matching the single number on the drawing. Also, if its surface is rough enough that the high points get flattened during assembly, the actual interference can also drift from what the drawing intended
Conclusion
Interference fit looks like a simple concept, but the details underneath it, from how the range gets specified to how it holds up at speed or under vibration, are what actually decide whether the joint works. At Erye, our assembly service reviews interference fit specifications and assembly feasibility as part of every project, identifying problems before the parts are put into production.
