Press fits are one of the simplest ways to join two parts, yet they are also one of the easiest details to get wrong. The tolerance is unforgiving: even if there is a difference of just a few micrometers, the components will become too loose or too tight, resulting in a failed connection. This guide breaks down how press fits work, how to calculate the right tolerance, and what to notice for press fit.
What is a Press Fit Assembly?

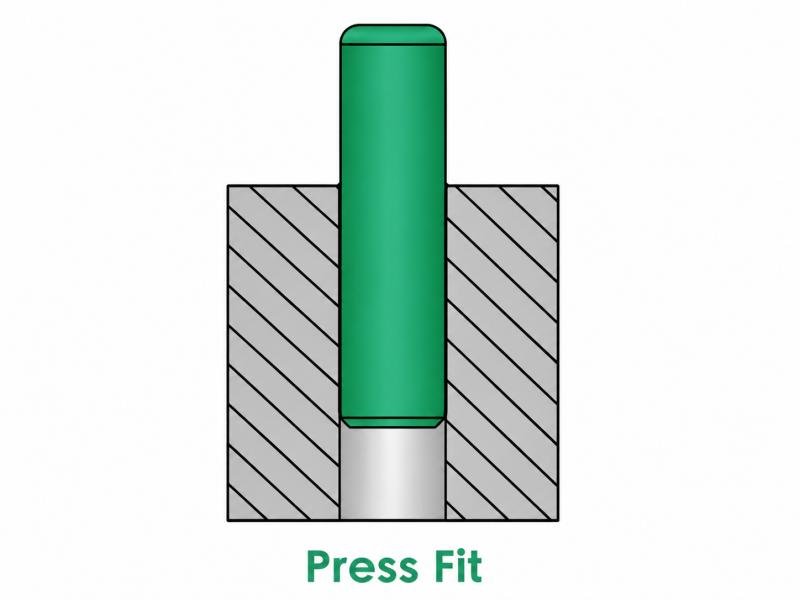

Press fit is a method of joining two parts by forcing one component into another where the mating dimensions slightly overlap, typically a shaft pressed into a hole that is nominally slightly smaller. That overlap is called interference: the amount by which the shaft’s diameter exceeds the hole’s diameter. The relationship between these mating dimensions is what defines the fit between parts.
Instead of using adhesives, fasteners, or welds, the parts are held together purely by the friction and elastic deformation created at the interface. Because no additional hardware is needed, press fits are a common choice wherever a strong, permanent or semi-permanent connection is needed without adding weight, cost, or extra assembly steps.
Types of Press Fits
Press fits generally fall into a few categories, depending on how much interference is designed into the joint and how the parts are assembled:
- Light press fit: A small amount of interference that allows for easy assembly with light force, often by hand or with minimal tooling. It is used where some disassembly may be needed later.
- Medium press fit: Requires mechanical force to assemble. This is the most common type for permanent or semi-permanent mechanical joints.
- Heavy press fit: Involves significant interference and requires substantial force to assemble. These joints are extremely strong and essentially permanent, but they place higher stress on both components during assembly.
- Shrink fit: The outer part is heated, or the inner part is cooled, so the two can be assembled with little or no force. As the parts return to a common temperature, the interference and the resulting clamping force are created. It is typically used for very high interference values or for delicate components that could be damaged by mechanical forces.
How Does Press Fit Work?
When a shaft with a slightly larger diameter than the hole is pressed in, the shaft compresses slightly, and the hole expands slightly, just like pushing a slightly-too-large cork into a bottle. That elastic deformation generates contact pressure between the two surfaces. That contact pressure, combined with the coefficient of friction between the two materials, produces a holding force along the axial direction and a torque capacity. As long as the applied loads in service stay below these thresholds, the joint can ensure a firm connection.
Because the joint relies on elastic deformation, not plastic deformation, both the interference amount and the material properties need to be carefully matched. Too much interference pushes the material past its elastic limit, causing permanent deformation or cracking. If the interference is too little, the joint cannot remain stable when bearing the load.
Importance of Press Fit
Choosing a press fit instead of screws, adhesives, or welding isn’t just a design preference. It affects cost, assembly time, and reliability throughout a product’s life:
- Fewer parts and failure points: A well-designed press fit removes an entire category of hardware such as screws, adhesives, and welds that could otherwise loosen, degrade, or fail over time.
- Faster and simpler assembly: With no fasteners to install or curing time to wait out, press fits keep assembly quick and repeatable across a production run.
- Lower cost per unit: Eliminating hardware and secondary joining steps reduces both material cost and labor time. As production increases, these savings will gradually accumulate.
- A tighter design footprint: Without room needed for screw heads, welds, or adhesive joints, press fits allow more compact and lighter assemblies.
It should be noted that all of this reliability depends on getting the tolerance right. That is why it should be reviewed early, as part of a design for manufacturability check.
How to Measure and Calculate Tolerance Press Fit
Tolerance determines whether a press fit actually works. A change of just one tolerance class can be the difference between a joint that holds and one that cracks or slips.
Set the Tolerance Classes
First, determine the nominal diameter, then assign a tolerance class to the hole and shaft based on the fit you need. This is where cost and performance trade off. Tighter tolerances increase machining and inspection cost, looser ones may result in a joint that doesn’t hold.
Calculate Contact Pressure and Holding Force
Using the interference value along with each material’s stiffness and geometry, you can determine the holding force and torque capacity the joint can handle in service. This enables you to know early whether the design will actually survive the loads in actual application of your product.
Check against Stress Limits
Confirm both parts stay within a safe elastic margin. If the part is too tight, it can crack during assembly. If it is too loose, the joint may fail in service. It is much cheaper to identify these problems before assembly than to do so after the components have been manufactured.
Most of this is done with ISO fit tables or calculation software rather than manual formulas. What matters most on your end is confirming the numbers work on paper before production. A quick check that helps you avoid scrapped parts and schedule delays down the line.
Precautions for Affecting Press Fit
Several factors interact to determine whether a press fit will succeed:
Surface Finish
Rougher surfaces reduce a press fit’s grip during assembly, as the tiny high points get flattened or shaved off as parts are pressed together. This means the holding force of the press fit will be lower than the numbers on the drawing suggest.
Wall Thickness
In a press fit with a thin-walled housing, the housing expands more easily under a given interference, which can reduce contact pressure and split the housing in extreme cases.
Operating Temperature
Pressing a press fit together at room temperature takes more force and leaves more residual stress in the parts, raising the risk of cracking during assembly. Heating or cooling one part first lets the press fit slide together with less force, producing a lower-stress joint.
Material Properties
Since materials in a press fit expand and contract at different rates, temperature swings in service can loosen or over-tighten a press fit if the two materials have different thermal expansion coefficients.
Lubrication
Some press fits use light lubrication during assembly to reduce galling and achieve more consistent insertion force, but this can also slightly lower the effective coefficient of friction, reducing the joint’s holding force in service.
What Are the Applications of Press Fit?
Press fits show up across nearly every industry that involves mechanical assembly:
- Automotive: Bearing and bushing installations, gear and pulley mounting on shafts, valve seats and guides in engines.
- Electronics and connectors: Pins pressed into PCBs or housings, terminal and contact assembly.
- Medical devices: Precision components in surgical instruments and diagnostic equipment.
- Industrial machinery: Bearing installations, shaft couplings, and gear assemblies subject to continuous operating loads.
- Consumer products: Structural pins, hinges, and small mechanical assemblies.
Conclusion
Press fit looks simple, but the margin for error is thin. That is why it is worth working through the details before production starts. If you are well-prepared from the beginning, press fit stays exactly as simple as it looks. At Erye, our assembly service reviews press fit tolerances and assembly feasibility as part of every DFM review, pointing out any areas that need adjustment before you start production.
