In the modern manufacturing landscape, lightweight and high-precision components are increasingly in demand. From consumer electronics to medical devices and automotive interiors, people are seeking efficient ways to reduce material usage without compromising strength or aesthetics. Thin-wall injection molding (TWIM) has emerged as a vital technology to meet these needs. By producing plastic components with significantly reduced wall thickness, this process enables cost-effective, lightweight, and highly precise parts suitable for a wide range of applications.

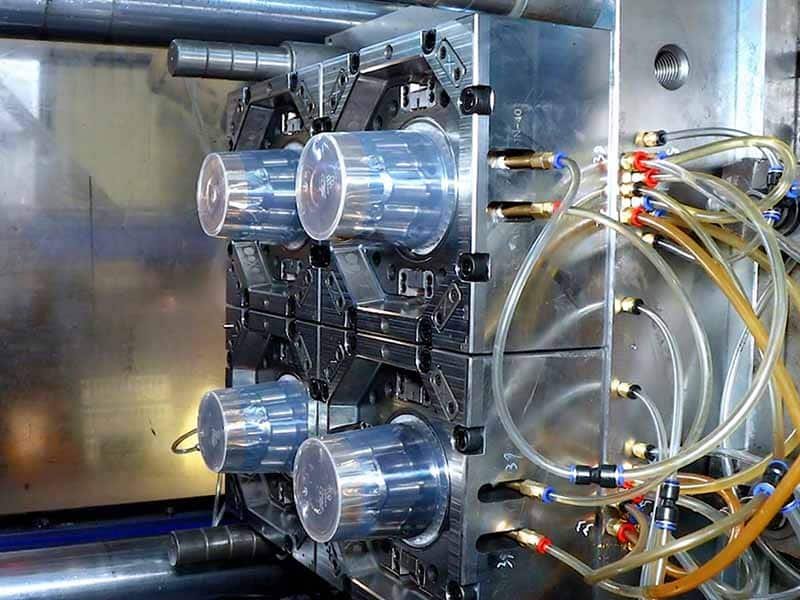

What is Thin Wall Injection Molding?
Thin wall injection molding is a specialized plastic injection process designed to produce parts with extremely thin walls, typically ranging from 0.4 mm to 1.5 mm. Unlike conventional injection molding, where thicker walls are standard. TWIM also requires precise control over material flow, temperature, and mold design to prevent defects. This process requires high injection speeds and pressures to fill thin cavities before the material cools and solidifies. The flow length of materials to wall thickness ratio (L/ T) often exceeds 150:1, and in packaging applications it can reach 200:1 or higher.
How to Know If Thin Wall Injection Molding Is Right for Your Part
Thin wall injection molding is not suitable for every design.
It works best when:
- The part requires weight reduction without losing structural strength
- Production volume is high, where material savings matter
- The geometry allows uniform wall thickness and smooth flow
It may not be suitable when:
- The design has thick-to-thin transitions
- Structural strength depends on wall thickness
- Tight tolerance must be maintained across long flow paths
Design Guidelines for Thin Wall Parts
Materials Selection for Thin Wall Parts
Thin wall injection molding requires resins with high flowability to fill long, narrow cavities quickly before the material solidifies. The most commonly used materials include:
- PP offers excellent flowability. Its high melt flow rate allows easy filling of very thin sections while keeping material cost low.
- ABS provides good flow combined with higher impact strength.
- PC delivers high flow in thin wall applications along with excellent clarity and dimensional stability.
When selecting materials, pay close attention to shrinkage rate and thermal properties. Learn more about 6 common mistakes in plastic material selection and how to avoid them.

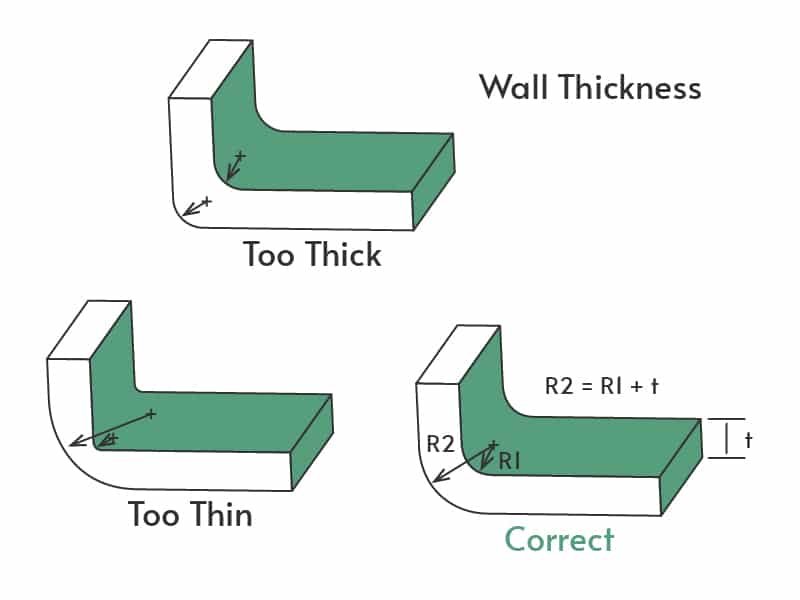

Uniform Wall Thickness
Uniform wall thickness is one of the most important design principles. Variations in thickness can cause differential cooling rates and lead to sink marks, warping, or stress concentrations. Where possible, maintain consistent thickness throughout the part.
Radii and Corner Design
Sharp corners restrict material flow and create stress concentrations in thin wall parts. Adding radii at internal and external corners improves flow and reduces the pressure required to fill the mold. Recommended practice is to apply radii of at least 0.5 to 1 times the nominal wall thickness at corners and transitions. This helps the molten material move smoothly into thin features and supports better part ejection.
Draft Angles
Draft angles facilitate part ejection and minimize drag on thin, fragile walls. Without sufficient draft, parts may stick in the mold or sustain surface damage during ejection. It is recommendes to apply a minimum draft angle of 0.5–1 degree per side on vertical surfaces. For textured surfaces or deeper features, increase to 1–2 degrees or more.
Ribs and Structural Features
Ribs provide stiffness without significantly increasing overall part weight or wall thickness. In thin wall designs, ribs help maintain structural integrity while keeping material usage low.
Gate Location and Design
Gate placement directly affects filling patterns in thin wall molding. Poor gate location can result in weld lines, air traps, or short shots.Position gates at thicker sections or along primary flow paths when possible.
Bosses
Bosses are used for mounting or fastening. In thin wall parts, they require careful design to prevent sink marks and maintain moldability.
Benefits of Thin Wall Injection Molding
The key benefits of thin wall injection molding are listed as follows.
- Reduces material usage and lowers unit cost in high-volume production.
- This technique produces strong yet lightweight products, reducing overall material usage and energy consumption.
- Shorter cooling times improve cycle efficiency and overall productivity.
- Ensures high precision and smooth surface finish for tight-tolerance parts.
- Supports compact and complex designs for modern miniaturized products.
Challenges of Thin Wall Injection Molding
The challenges of thin wall injection molding are listed below.
- Requires high-speed machines with sufficient clamping force.
- Precise temperature and flow control are essential to avoid short shots and warpage.
- Mold design must optimize gate placement and cooling efficiency.
- Only high-flow materials like PP, ABS, or PC are suitable.
- Long flow paths increase the risk of weld lines, burn marks, and surface defects.
burn marks in injection molding
Common Defects of Thin Wall Injection Molding and How to Avoid Them
Due to the high flow resistance and rapid cooling characteristics of thin wall injection molding, defects are more likely to occur if the process, mold design, or material selection is not properly optimized.
- One of the most common issues is short shots, where molten plastic fails to completely fill the cavity, especially in long flow paths or ultra-thin sections; this is typically addressed by increasing injection speed, optimizing gate location, or selecting higher-flow materials.
- Warpage is another frequent defect caused by uneven cooling or material shrinkage, particularly in thin electronic housings, and can be reduced through uniform wall design and improved cooling channel layout.
- Weld lines often appear where multiple flow fronts meet, which can weaken structural integrity and affect appearance; proper gate positioning and higher melt temperature can help minimize this issue.
- Burn marks and flow lines may occur due to trapped air or excessive shear in thin cavities, requiring better venting design and controlled injection parameters.
Applications of Thin Wall Injection Molding
Thin wall injection molding is applied across several industries:
- Consumer Goods: Food containers, lids, cups, and trays. The technique helps lower material costs of the products and enhances sustainability, while maintaining the required strength and durability.
- Electronics: Housings and components for mobile devices, laptops, and connectors. The process can produce complex shapes and thin-walled sections, ensuring adequate protection for internal components.
- Medical: Disposable items such as syringes, trays, and device components.The products are required to meet stringent regulatory requirements and preserve high precision and structural integrity to guarantee safety and proper functionality.
- Automotive: Interior and exterior parts such as instrument panels, dashboard components, and air vent housings. The technique can minimize weight while maintaining sufficient strength and durability, which plays an important role in improving fuel efficiency and overall vehicle performance.
As a professional automotive parts manufacturer, we have been deeply involved in the development and automotive production of thin wall injection molding.
Conclusion
Thin wall injection molding provides a method to produce lightweight plastic parts with efficient material use and short cycle times. Although the process involves technical considerations around flow, cooling, and mold design, these can be addressed through established guidelines and appropriate equipment. If you are developing or optimizing parts that could benefit from thin wall injection molding, Erye can review your design, suggest improvements, and support the transition to production.
Need Support for Thin Wall Injection Molding?
If your project involves thin sections or weight reduction, getting the process right early is critical.
Share your design, and get feedback on:
- Feasibility
- Material selection
- Cost optimization
FAQ
What is the minimum wall thickness achievable?
We can produce parts as thin as 0.4 mm, depending on the material and design.
Can recycled materials be used in thin wall injection molding?
In some cases, high-quality recycled thermoplastics are suitable, but material flow and mechanical properties must be carefully evaluated.
What is the typical lead time for custom thin wall parts?
Lead time varies by project size, complexity, and material selection, but our team provides optimized production schedules for both prototypes and mass production.
