CNC mills and CNC routers are both widely used for computer-controlled cutting, but they are suited to different machining requirements. A CNC mill generally provides greater rigidity and control for precision features and demanding materials, while a CNC router is commonly used for larger workpieces, sheet materials, and lighter cutting applications. These differences make the choice between the two important when planning a CNC machining project.

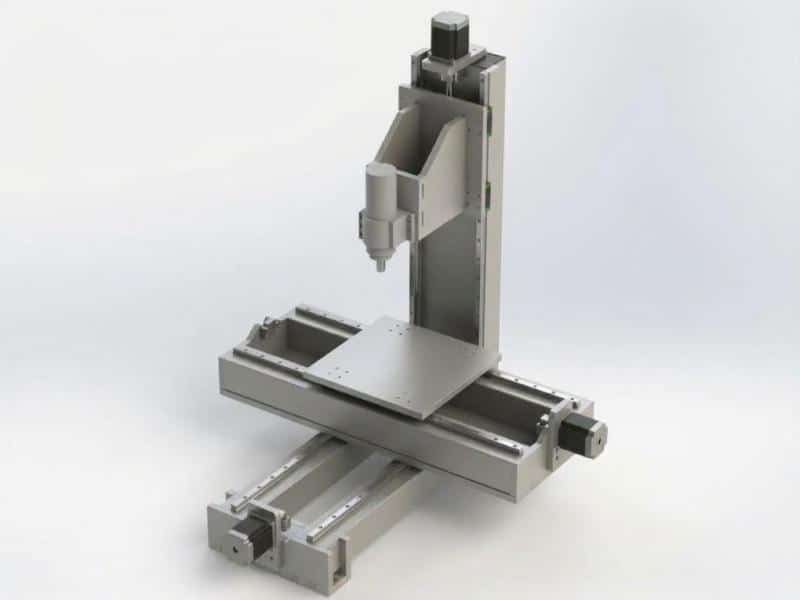

What Is a CNC Mill?
A CNC mill removes material with a rotating cutting tool while the workpiece remains secured on the machine table. The cutting tool moves along multiple axes to create features such as holes, pockets, slots, and contoured surfaces. CNC mill is widely used for CNC milling, drilling, tapping, and other subtractive machining operations. Their rigid structure and controlled tool movement make them suitable for parts that require close dimensional control.
What Is a CNC Router?
A CNC router uses a rotating cutting tool to remove material from a workpiece, similar to a CNC mill. CNC routers often have a large worktable. This structure allows the machine to process relatively large parts. For example, a large plastic panel may contain several cutouts and mounting holes across its surface. A CNC router can process the sheet in one setup without requiring the material to be divided into smaller sections.
Their high-speed spindle and relatively light cutting configuration allow them to efficiently remove material with smaller cutting forces. This makes them well suited to operations such as profiling, drilling, and engraving.

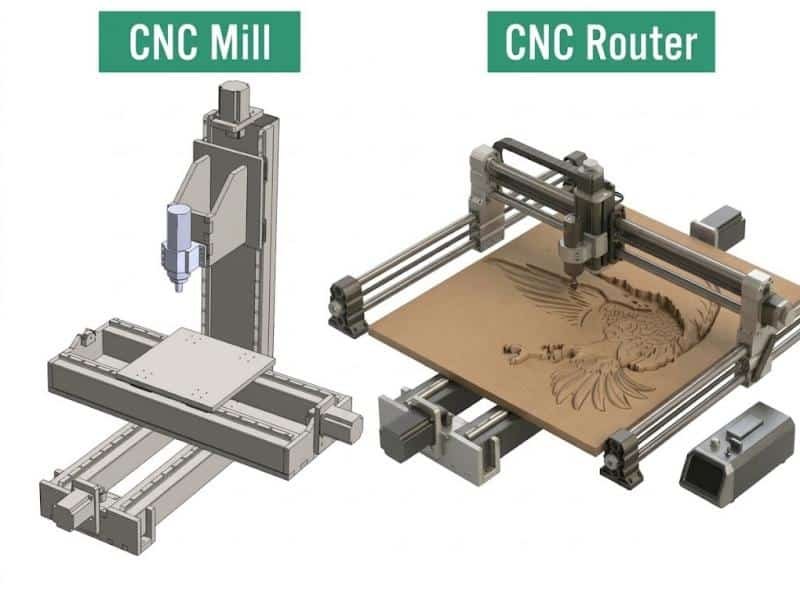

Differences Between CNC Mill and CNC Router
Although CNC mills and CNC routers share the same basic machining principle, they are configured differently and have distinct characteristics in how they perform in CNC machining.
Programming Language
Both CNC mills and CNC routers can use G-code to control tool movement, so their basic programming principles are similar. The main difference is the complexity of the programs required for different machining tasks.
CNC router programming is generally simpler because many routing operations just involve straightforward 2D profiles, contours, pockets, and engraving paths. CNC mill programming can be more advanced, especially for multi-axis machining, complex surfaces, angled features, and operations performed on multiple faces. These applications can require more sophisticated toolpaths and more detailed control of tool movement.
Machine Structure and Rigidity
CNC mills typically use a rigid machine structure with a fixed worktable and a supported spindle assembly. This construction is designed to resist vibration and deformation under higher cutting loads, making the machine suitable for deep cuts, heavy material removal, and precision machining.
CNC routers commonly use a gantry-style structure with a moving spindle over a large worktable. This configuration provides a larger machining envelope for sheet materials and large flat parts, but the lighter structure can generally carry lower cutting loads.
Material Capability
The structural differences also affect the types of materials each machine can process effectively. CNC mills can handle a broad range of metals, including aluminum, stainless steel, carbon steel, and brass, as well as engineering plastics. Their higher cutting capability allows them to remove material from harder and stronger workpieces.
CNC routers are commonly used for wood, plastics, foam, composites, and some non-ferrous metals. These materials generally require less cutting force, which fits the typical cutting capability of a router.
Precision and Machining Speed
The tool configuration of a CNC mill supports high machining accuracy for complex parts and detailed features. CNC routers generally have lower machining precision and are more suitable for applications with less demanding tolerance requirements.
CNC routers can offer faster material processing because their large worktables and cutting configuration are well suited to continuous tool movement over broad areas. CNC mills operate more slowly, where machining precision is more important than covering a large cutting area quickly.
Working Area
CNC mills generally have a more compact working area, which is suitable for small to medium-sized parts that require detailed machining. CNC routers typically have a larger working area, making them well suited to large panels, sheets, and flat workpieces. A large worktable allows the machine to process more of the workpiece in a single setup, which is useful when the part size is too large for a typical CNC mill.
Cost
The cost of a CNC mill is generally higher because of its rigid construction, more complex machine configurations, higher-power components, and greater capability for precision metal machining. Industrial CNC mills cost several thousand dollars, with advanced machines costing considerably more. Tooling, maintenance, and operating costs can also be higher depending on the machine and application.
CNC routers generally have a lower initial cost. Industrial models commonly cost a few hundred dollars. They can provide a more economical option when the application involves large workpieces, sheet materials, and relatively simple cutting operations.
Tips for Selecting Between CNC Mill vs CNC Router
The differences between CNC mills and CNC routers can directly affect the practical requirements of a machining project. The following factors can help you choose the right machine for your project.
- Delivery date: CNC routers may offer a shorter cycle for large, simple parts, while CNC mills may take longer when multiple precision operations are required.
- Order quantity: Choose CNC routers for larger quantities of relatively simple parts; choose CNC mills for smaller quantities of precision parts.
- Part revision: Frequent changes to complex features may favor CNC mills, while simple profile changes can be handled efficiently with CNC routers.
- Material waste: For large sheet parts, CNC routers can make efficient use of the available sheet area. For smaller solid parts, CNC mills may be more practical.
Conclusion
The choice between CNC routers and CNC mills ultimately comes down to which process fits the part and production plan more efficiently. Rather than choosing based on machine capability alone, you should compare the part requirements with the expected lead time, quantity, and overall production needs.
