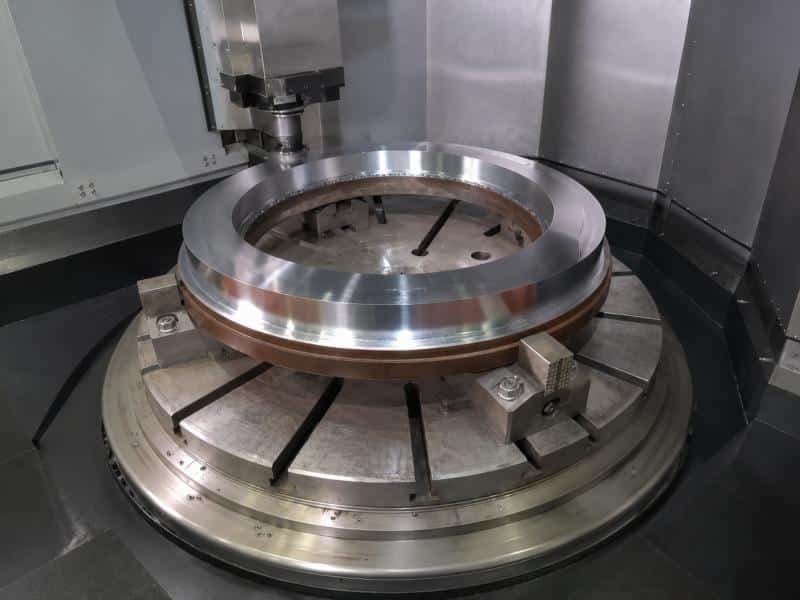

A Guide to Large CNC Machining: Precision at Scale

Large CNC machining is the process of cutting, drilling, and shaping oversized components, typically anything beyond the work envelope of a standard three-axis mill. The process uses the same core CNC logic as small-part work, including programmed tool paths, automated cutting, and tight computer control, but everything scales up, including bigger machines and bigger fixtures.

If your project involves parts longer than a meter, heavier than a person can lift, or bulky enough to need a crane, you need large CNC machining. This guide breaks down what the process involves, what you need in the process, and its applications across industries.

What Is Required for Large CNC Machining?

Producing a reliable oversized component takes more than a big machine. Three things must be met to achieve it: the right equipment, the right tolerance control, and the right material choice.

Machine

Large CNC machining needs equipment built around scale, not just precision. A few things matter most:

• Large work envelope: The machine’s X, Y, and Z travel has to comfortably clear your part, with room for fixturing and tool clearance.
• Bed rigidity: Bigger parts mean longer cutting paths and more vibration risk. A rigid frame keeps the tool path accurate instead of chattering.
• Multi-axis capability: Large parts often need 4-axis or 5-axis setups to reach angled features without flipping and re-clamping the whole piece.
• Gantry or bridge-type mills: For very large, flat components, gantry machines move the cutting head over a stationary part — often the only practical setup once size gets past a certain point.

Material

Material choice affects everything from machine load to final part stability.

• Aluminum is common for large parts because it is lighter to handle, cuts faster, and resists warping better than many alternatives.
• Stainless steel is used when the components need to have strength or wear resistance, but they cut slower and needs more robust fixturing to manage the added weight.
• Stress-relieved stock, such as cast aluminum blocks or cast iron, matters more at scale. Raw material with internal stress can warp once material is removed and the part loses rigidity. This problem barely shows up on small parts but becomes obvious on large parts.

Why Choose Large CNC Machining

Large parts have their own demands, such as strength or precision. Large CNC machining can precisely meet these requirements. The advantages below show why it fits complex and high-stakes projects.

Simpler Assembly

Large CNC machining simplifies assembly steps. A standard CNC machine has a limited work envelope, so an oversized part usually gets split into sections, machined separately, then bolted or welded back together. Large CNC machining skips that. The part comes off whole without any assembly steps, minimizing the risk of human error.

Consistent Accuracy

Large CNC machining keeps dimensional accuracy consistent across the entire part. On a regular-size machine, a part that is too big for one setup needs repositioning or a second machine, and each move can introduce slight error. A large-bed 5-axis setup can hold the part in a single clamping, so every feature stays referenced to the same origin.

Versatility

Large CNC machining covers a wider range of project requirements than a standard-size machine. It can process a broad range of materials without needing different equipment for each one, and multi-axis tooling lets it cut complex geometries, angled features, and contours across multiple faces of the same part.

Lead Time Reduction

Large CNC machining reduces the waiting time that comes with splitting a part across multiple setups or machines. Each handoff between a standard machine, a second setup, and a separate machine for hard-to-reach features adds scheduling time. Large-format equipment handles the whole part in one continuous run, cutting out that coordination delay.

Improved Structural Integrity

Removing fasteners and welded joints from a large part can remove the weak points that come with them. Stress concentrates around bolted holes and welded seams, and that’s usually where a part starts to crack or fail over time. Large CNC machining cuts a part from a single piece of solid material, so it avoids these stress areas, enhancing the structural strength.

Problems in Large CNC Machining and How to Solve Them

Large CNC machining brings real advantages, but it also introduces problems that standard machining rarely runs into. Here is what typically comes up in large CNC machining and how to solve them.

Fixturing Complexity

Holding a large, heavy, and sometimes irregular part securely without distorting it takes custom jigs and careful clamp placement. Working from a solid model early lets you design fixture points into the part before cutting starts, instead of improvising clamp locations after the fact.

Thermal Drift

Heat from cutting spreads unevenly across a large surface, and even small temperature changes shift dimensions. Machining in a temperature-controlled environment and letting the part stabilize between roughing and finishing keeps that drift from showing up in the final measurements.

Tool Deflection over Long Cuts

Reaching deep into a large part often means longer tool overhang, and the tool may flex slightly, leading to inconsistent wall thickness or surface finish across the part. Shorter tool paths, rigid tooling, and lighter finishing passes near the end of the cut help keep that flex under control.

Machine Maintenance and Downtime

Large machines carry heavier loads and longer duty cycles than standard equipment, which wears components faster and raises the possibility of unplanned downtime. A regular maintenance schedule and a check against actual usage hours can help find wear and reduce unplanned downtime.

Material Waste

Cutting a large part from solid stock means removing a lot of material to reach the final shape, and that excess adds up fast at scale. Planning the toolpath in CAD/CAM software ahead of time can trim unnecessary material removal without affecting the finished part’s accuracy.
