Multi-axis CNC machining cuts a part from more than two directions in a single setup. If the part has an angled hole or a curved pocket, or a feature on three different faces, you may need multi-axis CNC machining. In this article, we will break down the different axis types, when to use them, the benefits of multi-axis machining, and how to choose the right setup for your parts.
What Is Multi-Axis CNC Machining
Multi-axis CNC machining is a computer-controlled cutting process that combines the three linear X, Y, and Z axes with one or more rotational axes. Like other forms of CNC machining, it uses programmed tool movements to remove material, but the added rotational axes allow the part to tilt, swivel, or spin during cutting, so the machine can approach a part from almost any angle, allowing it reach compound angles and undercuts in a single continuous job.
How Does Multi-Axis CNC Machining Work
The process starts with the CAD model, which defines every angled face and feature the tool needs to reach. That model will be converted into a program that coordinates all the axes together. As the cutter moves along X, Y, and Z, the rotary axes tilt or spin the part to keep the cutting edge at the right angle throughout the cut. During the run, sensors track tool position and cutting forces in real time, flagging any deviation before it turns into a bad part.

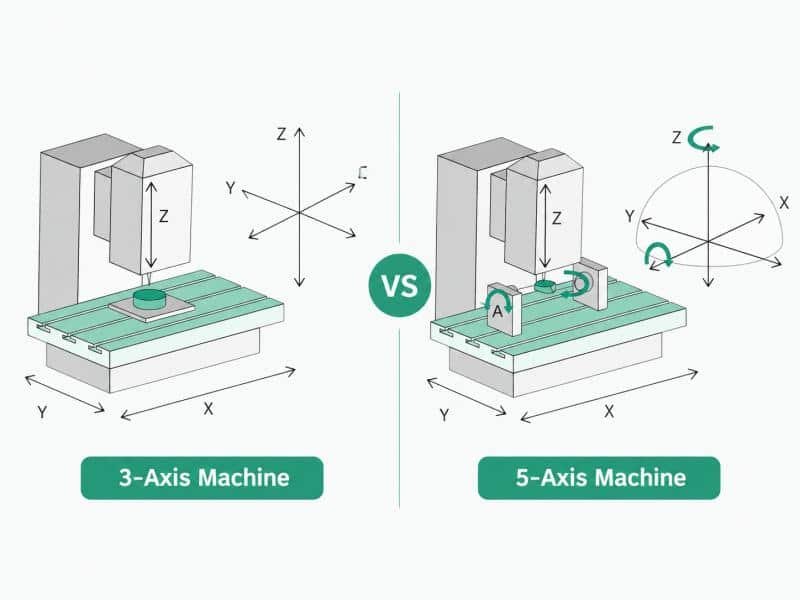

Different Types of Axes in CNC Machines
The number of axes on a machine determines exactly what geometry it can reach. Each configuration works differently:
- 3-axis: Linear movement only. Great for flat faces, simple pockets, and drilled holes on one plane. This is the baseline and often the most cost-effective option for straightforward parts.
- 4-axis: Adds rotation around one axis, usually the A-axis. The part spins while the tool stays fixed, which opens up cylindrical features and holes around the circumference without a manual re-clamp.
- 5-axis: Adds a second rotational axis. The tool or table tilts and rotates simultaneously, so the cutter reaches compound angles, undercuts, and organic contours in a single pass.
Each added axis increases what geometry is reachable, but it also raises the programming and setup complexity behind the scenes. So you should choose the appropriate axis machine based on your component requirements.
How to Know Which Type of Multi-Axis Machining Fits
The right axis configuration depends on the machining requirements of the part. The following factors can help determine which type is the better choice.
Part Geometry
Flat parts with features on one or two parallel faces need 3-axis. Cylindrical parts or circumferential features need 4-axis. Compound angles, undercuts, or curved internal channels, like a medical device housing, need 5-axis, since a straight-line tool path can’t follow that shape.
Tolerance Requirement
How tightly features on different faces need to align determines how many axes a job needs in one setup. For example, an aerospace bracket with angled mounting holes that must align within a few thousandths of an inch may benefit from 5-axis machining, as completing the features in a single setup reduces the risk of errors accumulating across multiple 3-axis setups.
Production Volume
For low-volume or prototype runs, the setup time saved by multi-axis machining usually outweighs the higher hourly rate. For high-volume simple parts, 3-axis with dedicated fixturing stays more economical, since setup cost spreads across a larger batch.
Advantages of Multi-Axis Machining
Multi-axis machining brings many benefits that make the process ideal for many parts, especially for parts with complex geometry. The key benefits include:
Tighter Tolerances
Multi-axis machining can complete multiple features in a single clamping, reducing the alignment errors that can occur when a part is repositioned between operations. Keeping the part in the same setup maintains a consistent reference point across features and helps improve dimensional accuracy.
Prolonged Tool Life
Multi-axis machining varies the cutting angle throughout the operation, which spreads wear across more of the tool’s edge instead of concentrating it in one spot. That keeps the tool sharper for longer and cuts down on how often it needs replacing.
Access to Complex Geometry
Certain features require tool access from multiple directions that 3-axis machining cannot provide in a single setup. Features, such as undercuts, compound curves, and deep angled pockets, may require additional repositioning on a 3-axis machine. Multi-axis machining provides greater tool access to these features while reducing the need for multiple setups.
Better Surface Finish
On a 3-axis machine, the tool angle stays fixed while the curved surface keeps changing direction beneath it, leaving visible marks between passes. A 5-axis tool path adjusts the angle continuously to stay optimal to the surface, so cutter engagement stays consistent and reduces those marks compared to a 3-axis machine.
Consistency Across Production Runs
Multi-axis machining keeps the part in the same position without any movement in one setup. That removes the small variations each reposition would introduce, improving the dimensional consistency between batches.
Disadvantages of Multi-Axis Machining
Multi-axis machining removes setups and tightens tolerances, but at the same time it also has limitations in cost, programming complexity, delivery time, and the skill requirements.
- Cost: Multi-axis machining runs at a higher hourly rate than 3-axis work, and it often needs specialized cutting tools, which adds to the total cost of the job.
- Programming complexity: Simultaneous 5-axis tool paths take longer to program and simulate than a 3-axis job, which adds to your overall preparation time before machining begins.
- Delivery time: Complex fixturing and longer programming time can push lead times out, especially for a first-time part.
- Skill requirements: Operating a multi-axis job takes more hands-on experience, such as reading complex tool paths and setting up multi-angle fixtures. It may affect quality if the job is handled by someone unfamiliar with it.
Conclusion
To fully utilize the advantages of multi-axis machining, the key lies in matching the process to the part’s geometry and tolerance. If done right, it can deliver tighter tolerances, better surface finish, and fewer setups without adding unnecessary cost. If you are weighing whether your next part needs 3-axis or 5-axis, Erye’s CNC machining service can review the drawing against these factors and help you land on the right setup.
