Knit lines and weld lines are common injection molding defects. Although these two terms are often used interchangeably in injection molding, their characteristics are slightly different. Understanding the differences between knit lines and weld lines can help you evaluate part appearance, mechanical performance, and overall molding quality.

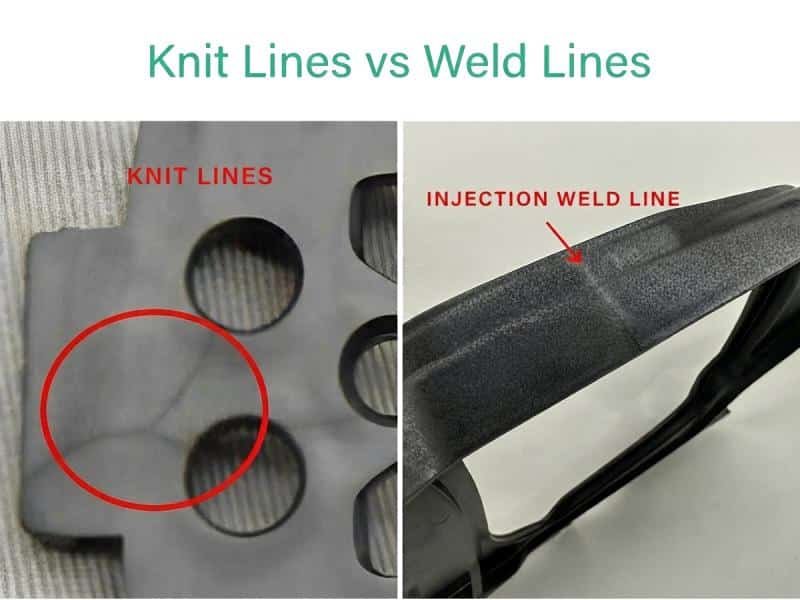

Knit Lines vs Weld Lines
Knit lines form when two separate plastic flow fronts come together and partially bond during the cooling process. Knit lines are commonly found around features that interrupt plastic flow, including holes, inserts, openings, or areas where material flow divides and reconnects.

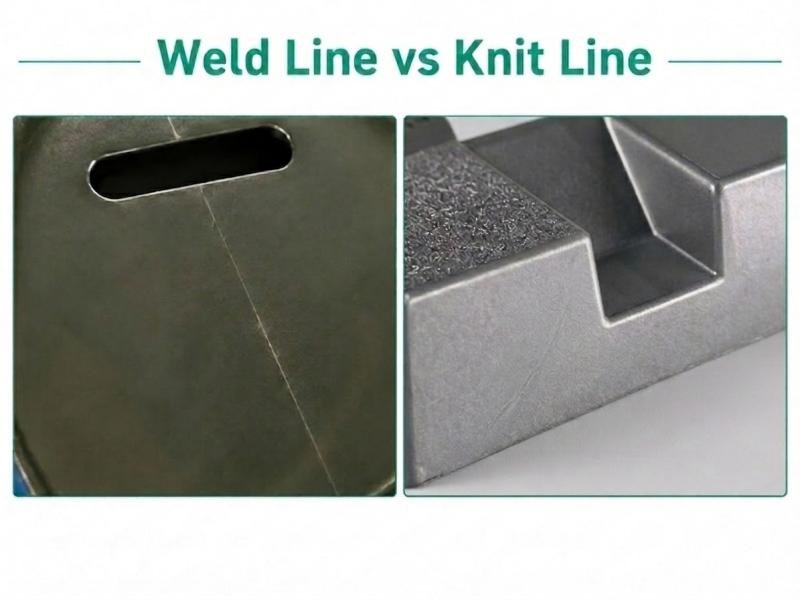

Weld lines occur when two molten plastic flows meet and fail to achieve complete fusion. Similar to knit lines, weld lines appear as visible seams on the surface of molded parts.
The main difference lies in how well the two flows fuse together after contact. For a detailed explanation of knit lines and weld lines, you can read our articles about the two defects.
Common Similarities Between Knit Lines and Weld Lines
In practical injection molding applications, the difference between knit lines and weld lines is not always obvious. Many industries use both terms to describe the same type of flow-front meeting defect.
From an appearance perspective, both knit lines and weld lines may appear as thin seams, lines, or slight surface marks on molded parts. These marks are often more noticeable on parts with smooth or glossy finishes, especially when the flow fronts do not merge evenly during molding.
In terms of performance, both knit lines and weld lines can become weaker areas of a molded part if the bonding between the two flow fronts is insufficient. The reduced bonding strength may affect mechanical performance, particularly in applications involving impact, pressure, or repeated loading.
Because they share similar visual characteristics and potential effects on part performance, knit lines and weld lines are often evaluated together when improving injection molding quality.
Factors and Solutions for Knit Lines and Weld Lines
Multiple factors influence the formation of weld lines and knit lines during the injection molding process. Material properties, mold conditions, and processing parameters all determine how well separate melt fronts come together and bond inside the mold cavity.
Material Selection
Material selection also influences the appearance and strength of weld lines and knit lines. Different plastics have different viscosity, flow behavior, and bonding characteristics, which means some materials are more likely to show visible flow-front meeting areas.
Choosing a material that matches the required appearance and performance requirements can help minimize defect severity. For reinforced plastics or materials with additives, their effect on weld line strength should also be considered during material selection.
Let Us Help You!
Gate Location and Flow Path Design
The way molten plastic travels through the mold cavity has a major influence on where weld lines and knit lines appear. When the material flows around features such as holes, inserts, or ribs, the flow path may split into multiple directions and reconnect later, creating potential meeting points.
Optimizing gate location helps control where these flow fronts merge and can reduce the formation of visible weld lines and knit lines. Proper flow planning can also help move potential weld line areas away from visible surfaces or high-stress locations. Mold flow analysis can be used to predict where these defects may occur and optimize the filling process before production.
Process Parameters Control
Melt temperature, injection speed, and pressure are key injection molding process parameters that influence how effectively separate plastic flow fronts merge inside the mold cavity. When the melt temperature is too low, or the filling speed is slow, or injection pressure is insufficient, the molten plastic may have reduced flowability when entering the mold cavity. It can cause the material to lose heat before the flow fronts meet, reducing the ability of polymer chains to bond properly.
Maintaining a suitable melt temperature, injection speed, and pressure helps keep the plastic in a proper flow state when flow fronts meet and allows the two flow fronts to merge more effectively. This can improve bonding quality, reduce visible line marks, and prevent potential reductions in the mechanical strength of the molded part.
Mold Temperature
Mold temperature plays an important role in controlling how quickly the plastic solidifies. If the mold surface is too cold, the molten material may harden before different flow fronts have enough time to fuse together.
Maintaining an appropriate mold temperature and balancing cooling time allow the plastic to remain fluid for longer, improving the quality of the bonding area while maintaining efficient production cycles.
Venting and Trapped Air
During injection molding, trapped air inside the mold cavity can interfere with the meeting of molten plastic flows. When air cannot escape properly, it may prevent complete contact between flow fronts and make weld lines or knit lines more noticeable.
Improving the venting system allows air and gases to escape smoothly, helping the molten plastic fill the cavity more evenly and reducing the severity of these defects.
Conclusion
By properly managing the injection molding process, the formation and severity of knit lines and weld lines can be reduced, helping achieve better surface appearance and more reliable part performance. With extensive experience in injection molding, Erye provides professional molding solutions to help customers identify potential defect risks, optimize part quality, and achieve consistent production results.
