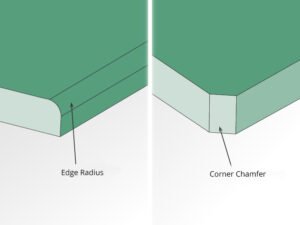

Fillet vs chamfer are edge treatment that far more than aesthetic features in engineering drawing. They are essential elements that impact part strength, safety, manufacturability, and performance, whether designing for CNC machining, injection molding, or 3D printing
Chamfers, fillets, and bevels each serve unique functions. Fillet is a rounded interior or exterior corner, commonly used to reduce stress and enhance flow in molded or machined parts. Chamfer, by contrast, is a straight, angled cut that helps with assembly alignment, reduces sharp edges, and eases manufacturing. Bevel is similar to chamfer but involves a sloped edge that is not are a standard angle.
Below we explore details of fillets and chamfers—why they matter, when to use them, and how to choose between fillets vs chamfer in engineering scenarios.
What Is a Fillet
Fillet in engineering design refers to a rounded transition between two surfaces, typically at the intersection of two planes. Fillets can be used to both interior and exterior corners, the purpose are to eliminate sharp edge, and distributing stress more evenly throughout the parts. This design feature enhances the structural integrity of the part and reduces the risk of stress concentrations that could lead to failure.
There are two primary types of fillets:
- Concave Fillets: These are applied to interior corners, creating a smooth, rounded transition that helps in reducing stress concentrations within the part.
- Convex Fillets (Rounds): Applied to exterior corners, convex fillets provide a rounded edge that can improve the part’s durability and aesthetic appeal.
Fillet in Engineering Drawing
In engineering drawings, fillets are specified using the radius symbol “R” followed by the radius value, such as “R0.5”. This notation indicates a fillet with a 0.5-unit radius.
For example, a fillet with a 0.5-inch radius would be represented as “R0.5” on the drawing.
Purpose of a Fillet
Parts with sharp corners often have concentrated stress at those points, making them prone to cracking. In most cases, except for the necessary sharp corners, we recommend using round fillet corners. The benefits and purpose include:
- Stress Reduction: Rounded corners help spread out the load, boosting and maximizing the part’s mechanical strength.
- Improved Flow Dynamics: They enhance the flow of molten plastic, making it easier to fill the mold and remove the part, while also reducing defects like sink marks at wall transitions.
- Mold Longevity: Rounded corners simplify the mold’s machining and heat treatment, which may increase the mold’s service life.

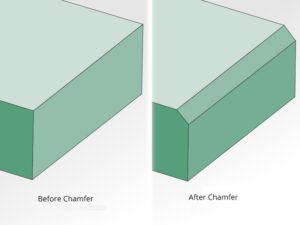

What Is a Chamfer
Chamfers are beveled edges that connect two perpendicular surfaces; it is a straight, angled, and replace a sharp 90-degree corner. Chamfers are typically at 45 design angle, though angles like 20 degrees are used for specific applications, such as fluid power seals. It can be used on both internal and external edges to remove sharpness, facilitate assembly, and enhance safety. Unlike fillets, which are rounded, chamfers are flat and linear, making them easier and more cost-effective to machine. They are commonly found in mechanical parts, sheet metal designs, and molded components, especially where parts need to fit together smoothly or where sharp edges could pose a hazard.

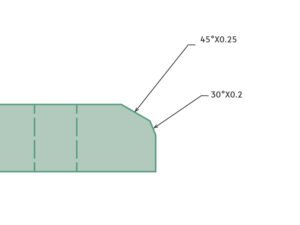

Chamfer in Engineering Drawing
Chamfers are dimensioned in engineering drawings using two primary methods:
- Distance × Angle: For example, a chamfer specified as “0.25 × 45°” indicates a 0.25-unit length at a 45-degree angle.
- Equal Distance: Alternatively, chamfers can be defined by equal distances along both adjacent edges, such as “0.25 × 0.25”.
Purpose of a Chamfer
Chamfers are used to improve component functionality, safety, and appearance, which are valuable in injection molding. The benefits and purpose include:
- Stress Reduction: Chamfers help spread stress, reducing the risk of cracks compared to sharp edges. While fillets are better for stress distribution, chamfers are still effective, especially for materials like polycarbonate.
- Safety and Comfort: By eliminating sharp edges, chamfers reduce injury risks and improve grip, enhancing user experience in handheld products.
- Aesthetic Appeal: Chamfers create a polished look, adding a professional finish to plastic parts, though they may be less soft than fillets.
- Manufacturing Support: Chamfers aid plastic melt flow in molding, simplify demolding, and strengthen molds by reducing stress during use.

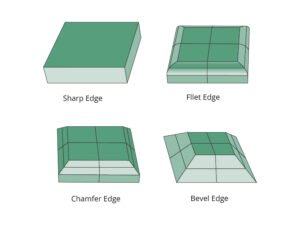

Main Difference Edge Style
The common edge styles include sharp edge, fillet edge, chamfer edge, and bevel.
Sharp edge refers to the direct intersection of two surfaces at a 90-degree angle, resulting in a crisp corner. Sharp edges may lead to stress concentrations in manufacturing, so we normally avoid them in edge design. A fillet is a round transition between two surfaces; it distributes loads more evenly and is often used to reduce stress concentrations. A chamfer edge is a beveled edge that replaces a 90-degree corner with a flat surface, usually at a 45-degree angle. It is easier and more cost-effective to machine compared to fillet. A bevel edge is similar to a chamfer but typically involves a sloped edge that is not a standard angle. It often serves functional roles, such as reducing the risk of chipping in brittle materials.
Now that you understand the four main edge styles, let’s break down the three main differences between them.
- Visual Appearance: As it is very clear in the ref picture, sharp edges are crisp, fillets are smooth and rounded, chamfers are flat and angled, bevels are sloped and can vary in angle.
- Purpose: All of them are made to ease up on sharp edges, their purpose distinct. Sharp edges are generally avoided due to safety and stress concerns; fillets reduce stress and improve flow; chamfers aid assembly and safety; bevels enhance aesthetics and functionality.
- Cost: Sharp edges are inexpensive but often impractical; fillets can be costly due to complex tooling; chamfers are cost-effective and easy to machine; bevels’ cost varies based on design complexity.
Fillet vs Chamfer: What Are the Differences Between Fillet and Chamfer
Both fillets and chamfers impact injection molding parts’ functionality, manufacturability, and aesthetics. The following table visually shows the main differences between fillets and chamfers to help you get the desired shape in your part design.
| Aspect | Fillet | Chamfer |
|---|---|---|
| Stress Distribution | Reduces stress concentrations by distributing stress over a larger area; ideal for high-stress areas. | Less effective; may concentrate stress at the edge, potentially causing deformation. |
| Manufacturing Cost | Requires specialized tooling (e.g., ball-end mills); longer machining time and higher cost. | Easier and more cost-effective to machine with standard tools; suitable for quick manual designs. |
| Assembly and Functionality | Curved shape complicates assembly; not ideal for screw holes, locating holes, or pins. | Easier alignment makes it preferred for assembly; common in threaded parts, bolts, and nuts. |
| Aesthetic and Coating Implications | Smooth, polished appearance; allows uniform coating application, reducing peeling or chipping. | Clean, angular look; sharp edges may cause uneven coating and increase corrosion risk. |
| Safety | Safer to handle by eliminating sharp corners; reduces injury risk. | Removes burrs but sharp angles may still pose a cutting hazard. |
When to Use Each Type
If you wnat a smooth, comfortable look-think phone cases or tool handles, fillets are safer and have softer feel. Fillets are preferred in following scenarios.
Ideal for parts under pressure or carrying heavy loads
Fillets distribute mechanical stress over a larger area, reducing stress concentration and preventing cracks, especially in high-load applications. Fillets slow down the rate of deformation by changing the direction of the part, making them ideal for parts under pressure or carrying heavy loads, such as structural components in machinery. Fillets are particularly useful for materials like polycarbonate prone to stress cracking.
Ideal for displayed parts that require aesthetics
Fillets provide a smooth, soft appearance, often preferred in industrial design for consumer products. Fillets are visually pleasing, giving a sense of safety and closeness.
Parts that require coating and finishing
Fillets are easier to cover with coatings due to their smooth transition, ensuring a uniform finish. Fillets are easier to coat compared to chamfers, where edges might be less uniform, improving aesthetic appeal and wear protection.
Parts that require safety and comfort needs
Fillets improve grip and comfort in handheld devices or tools, enhancing user experience. For example, fillets improve grip, making them suitable for ergonomic designs like tool handles, aligning with user safety and comfort needs.
Alternatively, following are the scenarios for chamfer edges:
Assembly parts are involved
Chamfers are ideal for parts that require assembly, such as screw holes, locating holes, or pins. The sloped edge acts as a guide, create tapered countersinks, make it easier for alignment and insertion in assemly process. Chamfers are preferred for mating parts like pins or bolts.
Part not used in heavy loads
Chamfers are suitable for parts or areas where stress concentration is not significant. Chamfers leave an edge, while they reduce stress, they are less effective than fillets, making them better for low-stress components.
Simple manufacturing and cost efficiency is important
Chamfers are generally easier and cheaper to produce, especially in CNC machining. Chamfers don’t require specific-sized tools, they are machined with simple tools in one motion, taking less time and being cost-effective if fillet benefits are not necessary.
Conclusion
The decision between using a fillet or a chamfer should be guided by the specific functional requirements, manufacturing capabilities, and aesthetic considerations of the part. Fillets are the preferred choice for reducing stress, enhancing aesthetics, and ensuring ergonomics, particularly in high-load and consumer-oriented applications. Chamfers, on the other hand, are ideal for assembly-critical parts, low-stress areas, and cost-sensitive designs, offering simplicity and cost efficiency.
Now that you have understand the concept of fillet vs chamfer, it is time to use these knowledge to design your next complext part. If you need further assistant, Erye’s engineers can help you optimize your parts design. Upload your files and let’s get started.
