Can UHMWPE Be Injection Molded? Challenges, Limitations and Solutions

We can find UHMWPE injection molding parts from medical devices and food processing to automotive and industrial machinery. UHMWPE parts are wear resistance, low friction coefficient, and chemical resistant. However, its extreme molecular weight poses significant challenges for traditional injection molding processes.

UHMWPE Material Properties

UHMWPE has a molecular weight typically between 3 and 6 million g/mol, which gives it unique mechanical properties. These include high impact strength, excellent abrasion resistance, and low thermal expansion. While these characteristics are advantageous for performance, they also significantly reduces melt flow and make injection molding dificult.

Is UHMWPE the Right Material for Your Project?

Suitable when:

Severe wear
Sliding surfaces
Low friction requirements
Chemical exposure

Not recommended when:

Tight dimensional tolerances
Thin walls below 1.5 mm
High cosmetic appearance requirements
High temperature environments

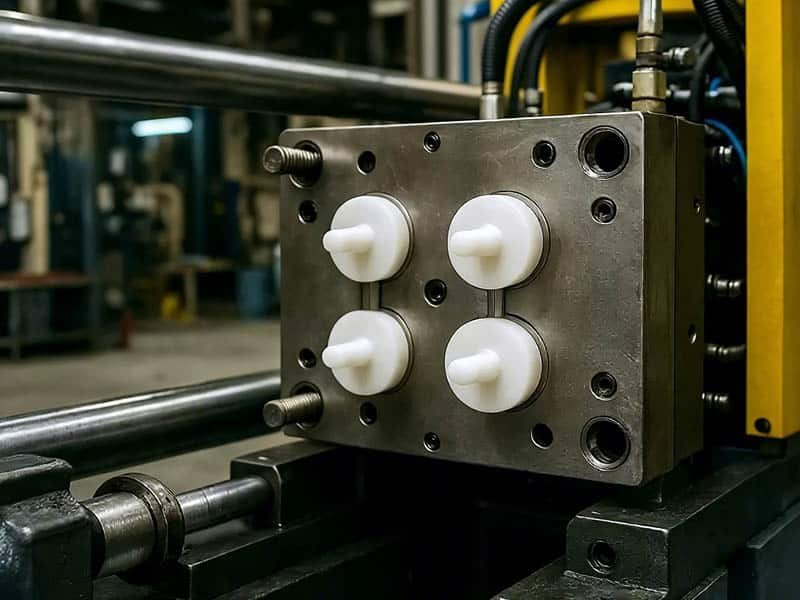

Can UHMWPE Be Injection Molded?

Technically, UHMWPE is injection moldable, but only under optimized conditions. It requires adjustments in material preparation, mold design, and process control. Many suppliers avoid it because conventional molding equipment and standard process parameters are often insufficient. At Erye, we achieve successful replication and structural integrity by integrating three critical factors:

Material Preparation: Utilizing specifically modified, injection-grade UHMWPE resins to manage viscosity without compromising mechanical performance.
Mold Design: Engineering specialized gating, balanced runner systems, and high-efficiency venting to minimize shear stress.
Process Control: Employing precise control over melt temperature and injection pressure to prevent material degradation.

When these factors are carefully implemented, it is possible to produce high-quality, custom UHMWPE components for a variety of industrial applications.

Key Challenges & Erye’s Engineering Solutions for UHMWPE Injection Molding

Several issues commonly arise during UHMWPE injection molding.

1. Flow Limitation

UHMWPE exhibits extremely high melt viscosity. Flow resistance increases sharply in long or thin-walled structures. This often leads to short shots, incomplete filling, or weak weld lines. Sometimes the material starts filling correctly, then stops midway. The process looks stable, but the cavity is not fully packed.

Erye’s Solutions and design guidelines:

Maintain a wall thickness above 2.0 mm whenever possible to facilitate melt progression.
Use modified UHMWPE grades with improved flow characteristics when application allows.
Design multi-gate or balanced runner systems to reduce flow length.
During injection molding, increase injection pressure gradually rather than abruptly.
Every project undergoes rigorous Moldflow analysis before tooling fabrication to predict filling behavior and optimize gate placement.

2. Thermal Sensitivity and Narrow Processing Window

UHMWPE has a very limited temperature range for stable processing. If the temperature is too low, melting is incomplete. If too high, material degradation begins. The difficulty is not only temperature level, but temperature uniformity. Local overheating can occur even when overall settings appear correct.

Erye’s Production Control:

We implement multi-zone closed-loop heating control for both the barrel and the mold to eliminate thermal fluctuations.
Strict management of melt residence time ensures the polymer does not degrade during production cycles.

3. Shrinkage and Dimensional Instability

UHMWPE shows relatively high and non-uniform shrinkage. Thick sections cool differently from thin sections, leading to internal stress accumulation. The result is often warpage or dimensional deviation after ejection. The part may look correct initially, then shift after cooling.

Erye’s Design & Production Guidelines:

Maintain uniform wall thickness wherever possible. Avoid sudden transitions or sharp corners.
We calculate mold shrinkage allowance using empirical data from previous UHMWPE productions rather than standard handbook values.
We apply extended, controlled cooling cycles and balanced cooling channel layouts to ensure even thermal dissipation.

4. Mold Wear and Surface Degradation

Although UHMWPE is chemically stable, it is mechanically abrasive during flow. Over time, this accelerates mold wear, especially at gates and high-shear areas.

Erye’s Tooling Standards:

We exclusively use hardened tool steels (such as H13 or premium tool steels hardened to 52-54 HRC) for UHMWPE molds.
Wear-resistant coatings (e.g., PVD treatments) are applied to high-shear gate regions to guarantee tool life and dimensional repeatability over mid-to-high volume runs.

Typical Applications of Molded UHMWPE Components

We regularly manufacture custom UHMWPE parts for sectors demanding high durability:

Medical Devices: Biocompatible components, surgical instrument guides, and laboratory equipment.
Industrial Machinery: Custom gears, bushings, guide rails, and conveyor system wear strips.
Food Processing: FDA-compliant, abrasion-resistant components capable of withstanding aggressive cleaning cycles.
Automotive: Low-friction seals, transmission thrust washers, and bearing surfaces.

Other Manufacturing Processes for UHMWPE

Other fabrication methods are widely utilized depending on part geometry, production volume, and specific design constraints:

UHMWPE Ram Extrusion: A continuous shaping process optimized for standard geometries. It continuously forces the material through a heated die to produce high-density rods, tubes, and profiles.
Compression Molding: A low-stress manufacturing method where heat and high pressure are applied directly inside a mold cavity. It is the preferred choice for producing thick slabs and large-scale industrial blocks.
CNC Machining: A subtractive fabrication method that cuts stock shapes into final parts. It delivers exceptional dimensional accuracy and surface finishes, making it ideal for low-volume components and complex prototypes.
3D Printing / Additive Manufacturing: A modern toolless production approach that builds components layer by layer. It offers unparalleled geometric freedom for customized or lightweight structures without expensive mold costs.

Partner with Erye for Your UHMWPE Projects

UHMWPE injection molding requires a systematic approach where material behavior, mold design, and process control are treated as a unified system.

If you are developing a component that requires the wear resistance of UHMWPE but are concerned about manufacturing feasibility, contact Erye’s engineering team today. Provide your 3D CAD files (STEP format), and our structural engineers will deliver a comprehensive Design for Manufacturability (DFM) review and a technical quotation for your project.
