Injection mold classification provides a practical way to compare tooling options by expected mold life and production needs. The SPI mold classification system groups injection molds into five classes, from Class 101 tools designed for very high production volumes to Class 105 tools intended for limited prototype runs. Understanding these classes helps you specify the right tool for your part.

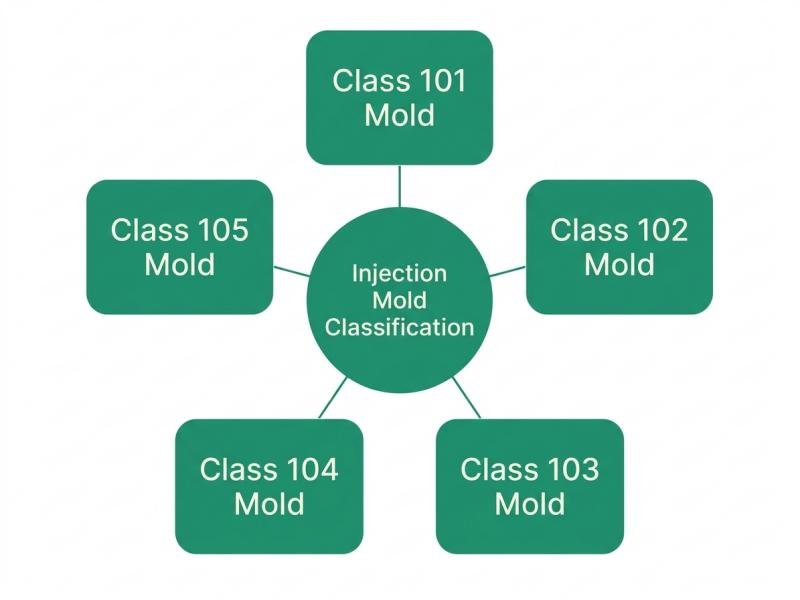

Injection Mold Classification: SPI Mold Standards
The Society of the Plastics Industry (SPI) classification is commonly used to describe injection mold construction and expected service life. The class provides a useful starting point for a tooling quote, but it does not replace a detailed specification. The final mold selection should also consider the resin, part tolerances, surface finish, and maintenance expectations. Below is a detailed description of each mold classification.
Class 101 Mold
A Class 101 mold is intended for extremely high production and a service life of at least one million cycles. It typically has the highest tooling cost and uses high-quality materials to withstand extended production runs. Its robust construction supports extended production runs by reducing mold wear, maintenance needs, and production downtime.
Design Considerations
- Mold base: Class 101 molds commonly require a mold base with a minimum hardness of around 280 BHN.
- Cavity and core hardness: The cavity and core surfaces must have a minimum hardness of 48 HRC, and all other mold components should also use hardened tool steel.
- Ejection and wear protection: Guided ejection and wear plates on slides help maintain reliable mold operation and reduce wear during repeated cycles.
- Cooling system: Cooling channels should provide effective temperature control near the cavities, cores, and slides wherever practical. Corrosion-resistant materials or treatments can help preserve cooling performance over time.
- Long-term mold stability: The mold design should account for wear points, side actions, ejection mechanisms, and maintenance access to support consistent operation throughout the planned service life.
- Additional construction features: Hardened sliding components, parting-line locks, and corrosion protection may be included according to the tooling specification.
Class 102 Mold
A Class 102 mold is commonly used for medium- to high-volume production, with a stated life of not exceeding one million cycles. It offers a balance between mold durability, part quality consistency, and tooling costs, suitable for parts that need close tolerances. Class 102 molds may not include features such as hot runner systems, which are often used in Class 101 molds to achieve faster cycle times and reduce material waste, resulting in longer cycle times and more runner scrap.
Design Considerations
- Mold base hardness: Common specifications call for a mold base hardness of around 280 BHN.
- Cavity and core hardness: Cavity and core surfaces typically require a hardness of 48 HRC or higher to improve wear resistance.
- Cooling system: Cooling channels should be positioned close to the cavities, cores, and slide cores wherever practical to support efficient heat removal.
- Ejection and wear protection: Guided ejection and slide wear plates may be specified to improve ejection reliability and reduce wear during repeated molding cycles.
- Surface and corrosion protection: Plated cavities and corrosion-resistant cooling channels can help protect mold surfaces and maintain cooling performance over the intended service life.
Class 103 Mold
A Class 103 mold is a common option for medium-volume production, with a typical rating below 500,000 cycles. It generally has lower tooling costs than Class 101 and Class 102 molds. It uses a combination of hardened and unhardened components to provide durability in critical areas while reducing costs on less critical components. It has basic mold design with fewer advanced features and suits established products with moderate lifetime demand and a need for repeatable production.
Design Considerations
- Mold base hardness: Common specifications require a mold base hardness of at least 165 BHN, typically made of steel or aluminum.
- Cavity and core hardness: Cavity and core surfaces typically require a hardness of around 280 BHN or higher to improve wear resistance.
- Ejection and wear protection: Guided ejection and enhanced wear protection may be optional, depending on the mold design and expected production volume.
- Part geometry: Deep ribs, side actions, and difficult-to-eject features require careful mold design to ensure reliable part release.
Class 104 Mold
A Class 104 mold is designed for low-volume production, typically below 100,000 cycles. It is designed for non-abrasive materials and can reduce initial tooling investment for limited production runs, especially when the resin is not highly abrasive and the part does not demand extensive wear-resistant features
Design Considerations
- Mold materials: Mild steel, aluminum, or other materials may be used for the mold base and cavity components, depending on part geometry, surface finish, and production volume.
- Cooling system: Cooling channels should be positioned near thick sections to control cycle time and reduce uneven shrinkage.
- Venting and ejection: Vents should be placed near the end of the melt flow path to release trapped air, while ejector pins should avoid thin walls and visible surfaces to prevent deformation and marks.
- Future production needs: It has limited durability. If demand exceeds the mold’s expected service life, repairs or replacement may be necessary.
Class 105 Mold
A Class 105 mold is intended for prototyping and very limited quantities, typically up to 500 cycles. It prioritizes low initial cost and quick design validation rather than long-term production durability.
Design Considerations
- Mold Materials: Class 105 molds may use aluminum, mild steel, cast metal, or epoxy, depending on the resin, prototype quantity, and trial requirements.
- Mold structure: Class 105 molds typically have a simpler structure with fewer components and less complex mechanisms, reducing tooling costs for limited production runs.
Why Mold Classification Matters
Mold classification plays a critical role in determining the overall cost-effectiveness and production performance of an injection mold throughout its service life.
Initial Tooling Investment
Mold affects the initial tooling cost. Class 101 molds require a higher upfront investment but are designed for at least one million cycles, spreading the tooling cost across a larger production volume. Class 104 and Class 105 molds generally cost less initially, but their service life is shorter. Choosing a mold class that matches the expected production volume helps avoid unnecessary tooling expenses
Mold Replacement and Maintenance
A mold’s expected service life determines how frequently it may require replacement. Class 101 and Class 102 molds support longer production runs, while Class 103 and Class 104 molds may need replacement sooner at higher production volumes. Class 105 molds typically last up to 500 cycles, making them only suitable for prototypes but impractical for sustained production. Selecting a mold with insufficient service life for the planned output can lead to production interruptions and additional costs.
Production Time and Material Waste
Mold can influence production efficiency through differences in mold construction and available features. For example, class 101 molds may incorporate hot runner systems and other features that support shorter cycle times and less material waste. Class 102 molds may not include hot runner systems, increasing cycle times and material consumption per cycle. These differences can affect lead times and material waste.
Part Quality and Consistency
Mold construction and component durability affect how consistently a mold maintains part dimensions and surface quality over repeated cycles. Higher-class molds offer greater wear resistance and more stable performance during long production runs, while lower-class molds may experience faster wear, which can cause dimensional deviations, surface defects, and reduced part quality.
Conclusion
The right injection mold class is not necessarily the one with the longest service life, but the one that fits your product’s production outlook. If demand is uncertain, a lower-class mold may provide a cost-effective starting point; when production volume grows, a more durable mold may offer better long-term value. Erye provides mold-making and injection molding services, with DFM reviews to assess part geometry, material selection, and tooling requirements before production. We can help you identify a suitable solution for your part specifications and production goals.
