A CNC machining drawing tells a supplier exactly what to make and how precise it needs to be. Without it, the supplier has to guess your tolerances, finish requirements, and critical features. That guesswork can lead to parts that don’t meet your expectations, re-runs, and schedule delays. This guide explains what a CNC machining drawing is, its types and anatomy, and how to prepare drawings that get your parts made right the first time.
What Is a CNC Machining Drawing?

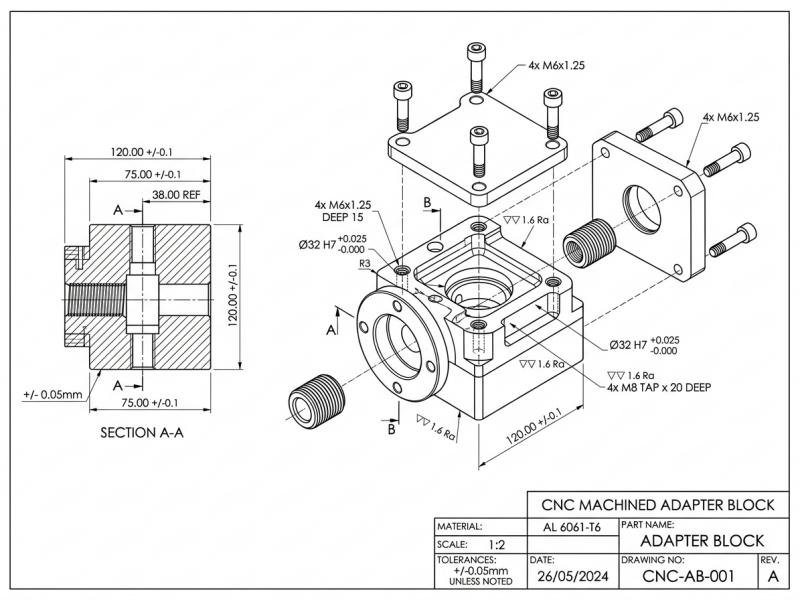

A CNC machining drawing is a technical document used to define the shape, size, material, and tolerances of a part before it enters the CNC machining process. It works alongside the 3D CAD model, but it carries information the model alone can’t show. Dimensions, tolerance bands, surface finish callouts, thread specifications, and material notes are all clearly shown on this drawing.
The 3D file shows what the part looks like. The drawing shows what actually matters for function. A hole might look identical to ten others in the model, but the drawing can specify which one holds a bearing at ±0.01 mm and which one is just a mounting clearance hole. Most suppliers, including Erye, request both files for a quote.
Different Types of CNC Machining Drawings
CNC machining drawings have several formats, each showing a part or assembly from a different perspective. Understanding what each drawing contains makes it easier to read dimensions, features, and manufacturing requirements correctly.
Detail Drawings
Detail drawings cover a single part. Each view, dimension, and note applies to that one component only. This is the most common type for custom machined parts, since it provides a complete set of specifications for an individual component.
Assembly Drawings
Assembly drawings show how multiple parts fit together. They usually skip individual dimensions and instead list part numbers, fastener types, and reference the detail drawings for each component. For example, a multi-part bracket assembly needs both an assembly drawing and a detail drawing for every unique part inside it.
Orthographic Drawings
Orthographic drawings present a part through flat, two-dimensional views: front, top, and side. Together, these views show the part’s overall shape, dimensions, and features from different directions, making the geometry and relationships between features easier to understand.
Isometric Drawings
Isometric drawings show a part in a single 3D-style view with all three axes visible at once. They are easier to read but harder to dimension precisely, so they are usually used as a supporting view rather than the primary reference.
Sectional Drawings
Sectional drawings slice through a part to reveal the internal features that are hidden by the normal external view, like bores, pockets, or wall thickness. For example, a part with an internal cavity needs a section view so wall thickness and depth show clearly without guessing from the outer surface alone.
Key Elements of a CNC Machining Drawing
A complete technical drawing follows a consistent layout, with standardized symbols, dimensions, and notes that convey the same information to everyone who reads it. Here is what each part does.
- Title block: Sits in the bottom right corner. It lists the part name, drawing number, revision, material, scale, and the person who approved it.
- Views: The main body of the drawing. Standard practice uses three orthographic views, front, top, and side, plus an isometric or section view when needed for clarity.
- Dimensions and tolerances: Numbers that define size, position, and the acceptable range of variation. These sit directly on or near the feature they describe, connected by extension and dimension lines.
- Geometric dimensioning and tolerancing (GD&T) symbols: Standardized symbols that control form, orientation, location, and runout.
- Surface finish annotations: Symbols and Ra values that define how smooth or rough a surface needs to be. These sit right next to the feature they apply to, since a sealing surface or a sliding fit depends on getting this number right.
- Notes and callouts: General instructions that apply to the whole part or specific local features: thread specs, heat treatment, plating, or deburring instructions.
- Revision table: A log of every change made to the drawing after its first release, with a date and description for each revision, preventing confusion when a part goes through multiple design iterations.
- Bill of materials for assemblies(BOM): A list of every component and its quantity, tied to the assembly drawing by item numbers.
How CNC Machining Drawings Support CNC Programming
A CNC machining drawing does not directly become a CNC program. The 3D CAD model provides the geometry used to create toolpaths in CAM software, while the drawing adds the other requirements that the finished part must meet. The programming process typically follows these steps:
- Import the CAD model: The 3D model provides the geometry needed to create machining operations and toolpaths.
- Set up the CAM job: The part orientation, stock size, workholding, and coordinate system are defined based on the part geometry and drawing requirements.
- Create toolpaths: Operations such as facing, contouring, pocketing, drilling, and threading are selected according to the part’s features.
- Set machining parameters: Tool selection, cutting speed, feed rate, and depth of cut are assigned to each operation based on the material and geometry.
- Simulate the toolpaths: The CAM software checks tool movement, collisions, and remaining material before the program is sent to the machine.
- Post-process the program: The completed toolpaths are converted into G-code that matches the specific CNC controller.
- Verify the finished part: The dimensions and other requirements shown on the CNC machining drawing provide the reference for checking whether the machined part meets the design requirements.
How to Read Critical Features on CNC Machining Drawings
Critical features determine whether a part functions as intended, and technical drawings use different types of callouts to define these requirements. The following examples show how common feature callouts are presented on CNC machining drawings.
Hole Position Callouts
A hole’s size and location are separate controls, so both need to be specified. Diameter uses ⌀, while counterbores (⌴), countersinks (⌵), and depth (↧) use their respective symbols, such as ⌴⌀12 ↧5 for a 12 mm counterbore 5 mm deep. Hole position uses the position tolerance symbol (⌖) in a feature control with a tolerance and datum references.
Thread Callouts
A thread callout reads as a single string of text next to the hole, following a set order: nominal size, pitch, and class of fit, like M8 x 1.25-6H for a metric internal thread. Depth follows using the same depth symbol (↧) seen on hole callouts, so a full callout might read M8 x 1.25-6H ↧12, meaning an 8mm thread with 1.25mm pitch, tapped 12mm deep.
Tolerances
Tolerance values should be matched with the actual function of the specific component. For example, a press-fit bearing bore might need ±0.005 mm, while a clearance hole for a loose bolt can sit at ±0.1 mm. The stack-up also needs to be taken into account when several dimensions control the same fit or location, since their individual variations can combine and shift the final result beyond the intended range, even when each dimension remains within its specified tolerance.
GD&T
GD&T requirements are shown in a feature control frame, including geometric symbols, tolerance value, and datum references when needed. The geometric symbol identifies the type of control: ⏥ means flatness, and ⊥ means perpendicularity. Datum references identify the surfaces, axes, or points used as references for defining the orientation or location of a part, and are labeled with letters such as A, B, and C. For example, ⏥ 0.05 limits how much a surface can vary from flatness, while ⊥ 0.02 A limits perpendicularity to datum A within 0.02 mm.
Why Are CNC Machining Drawings Important
A CNC machining drawing provides clear requirements for manufacturing and avoids ambiguity regarding key details. Without defined dimensions and tolerances, a 3D model may not provide enough information to determine the exact requirements for the finished part.
Prevent Costly Rework
The tolerances not marked on the drawing often get machined to a general default, and that default might not match what the part actually needs to function. A batch of finished parts with the wrong tolerance means scrapping the run and starting over.
Speed up Quoting
A supplier pricing a job needs to know which features are tight and which aren’t, since tight tolerances take more time, more careful setup, and sometimes different tooling. A drawing with clear callouts lets the supplier quote accurately on the first pass instead of asking follow-up questions.
Ensure Consistent Quality
A drawing acts as the fixed reference for every production run, defining the dimensions, tolerances, materials, and other requirements consistent across different production runs. Keeping these specifications in a controlled document helps maintain the same requirements across different batches and reduces the risk of variations caused by missing or inconsistent instructions.
Guide Inspection
Quality control checks a finished part against the drawing, not against a general impression of what the part should look like. Without documented tolerances, there is no clear standard to measure the part against.
Conclusion
A well-prepared CNC machining drawing sets a clear target for both machining and inspection. Clear dimensions, tolerances, and notes reduce ambiguity and make the intended result easier to understand and verify. A complete drawing also helps keep the design requirements clear from the start of machining through final inspection. Erye provides CNC machining services for precision parts, and you can send us your technical drawing and 3D CAD file for a review of the design requirements before machining.
