What is Overmolding?
Overmolding is a specialized manufacturing process where two or more materials are molded together to create a single part. The core concept of overmolding involves applying a layer of material onto a substrate made from a different material, typically combining a hard material such as plastic or metal with a softer, flexible material like rubber or silicone. The substrate is formed using different molding techniques such as injection molding, compression molding, or transfer molding, depending on the materials and desired properties. The end result is a product with integrated features like soft grips, enhanced insulation, or aesthetic elements that would be difficult to achieve using traditional molding processes alone.
Types of Overmolding
Overmolding can be categorized into several types based on the molding process and material combinations of the final part. The following sections explore the common types of overmolding.
Single-Shot Overmolding
It involves molding both the substrate and the overmolded material in a single operation. This method is typically used when the substrate is already in the desired shape or when the two materials can be processed together without requiring multiple steps. Single-shot overmolding is ideal for applications where simplicity and cost-effectiveness are key factors, such as in consumer electronics and household items.
Multi-Shot Overmolding
It requires two or more molding cycles to create a part with multiple layers of materials. In this process, the substrate is molded first, followed by one or more overmolding operations where different materials are added. Multi-shot overmolding is often used for products that require complex material combinations, such as automotive parts, medical devices, and advanced electronics.
Step-by-Step Process of Overmolding
The overmolding process typically follows these key steps:
- Preparation of Substrate: The first step involves preparing the substrate, which could be made of plastic, metal, or another material. The substrate is usually molded or pre-formed into the desired shape.
- Mold Design and Setup: Once the substrate is ready, the mold is designed to accommodate both the substrate and the overmolding material. The mold setup includes the injection system, heating, and cooling systems, which are critical for ensuring uniform material flow and bonding.
- First Molding Cycle: The substrate is placed in the mold, and the first material is injected or applied. This material is usually a rigid plastic or metal.
- Overmolding: After the substrate has cooled, the second material (usually softer, more flexible materials) is injected or applied over the substrate. This creates the overmolded layer.
- Cooling and Ejection: The part is cooled, and the final product is ejected from the mold.
Materials Used in Overmolding
The success of the overmolding process is largely determined by the materials chosen for both the substrate and the overmold. These materials must be compatible to ensure a strong bond and optimized performance. Different combinations of materials are selected based on the specific application requirements. Here’s a breakdown of the most commonly used materials in overmolding:
Thermoplastic Materials in Overmolding
Thermoplastics are widely used in overmolding due to their versatility, ease of processing, and recyclability. The most common thermoplastics used in overmolding include:
- Polypropylene (PP): Known for its chemical resistance and lightweight nature, PP is often used for overmolding automotive and consumer goods products.
- Polycarbonate (PC): Highly durable and impact-resistant, polycarbonate is used for overmolding applications that require high strength, such as in electronics and automotive components.
- Acrylonitrile Butadiene Styrene (ABS): ABS is valued for its toughness and stability, making it a popular choice for consumer electronics and industrial applications.
- Thermoplastic Elastomers (TPE): TPEs combine the flexibility of rubber with the processability of thermoplastics, making them ideal for soft-touch applications like handles, grips, and seals.
Elastomers and Rubber Materials
Rubber overmolding is one of the most common techniques. It can create ergonomic products and provide them with excellent grip, flexibility, and wear resistance. Some of the commonly used elastomers in overmolding include:
- Silicone: It is resistant to temperature fluctuations, UV exposure, and chemical degradation, and offers flexibility, excellent sealing properties, and biocompatibility, making it suitable for medical, automotive, food-grade applications, and baby products.
- Natural Rubber: Known for its elasticity and resilience, natural rubber is ideal for creating durable, flexible overmolded components.
- Nitrile Rubber (NBR): NBR is commonly used for overmolding in industrial and automotive applications where oil and chemical resistance is critical.

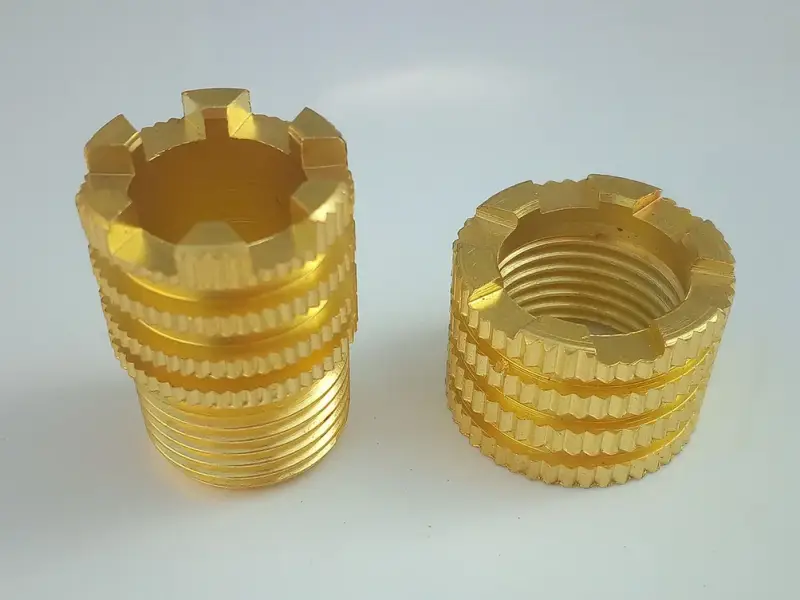

Metal Substrates in Overmolding
In some applications, metals are used as the substrate in overmolding, combining the strength of metal with the lightweight, flexibility, and insulation properties of plastics. Typical metals used in overmolding include:
- Aluminum: Lightweight, corrosion-resistant, and strong, aluminum is commonly used in automotive and aerospace overmolding applications.
- Stainless Steel: Known for its durability and resistance to corrosion, stainless steel is used in overmolding for medical devices and harsh industrial environments.
Other Specialized Materials

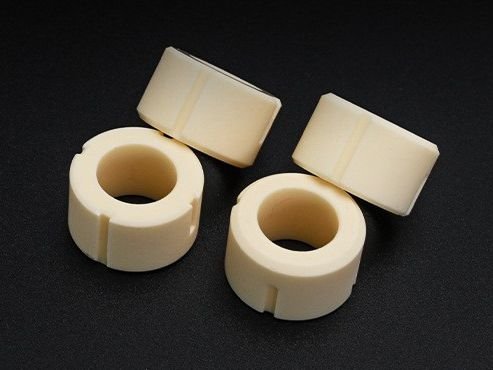

- Ceramic and Glass: They are used in overmolding applications requiring high heat resistance, electrical insulation, or optical clarity. Glass overmolding provides excellent transparency, dimensional stability, and strength, making it suitable for demanding environments.
- Composites: Overmolding composite materials, such as carbon fiber-reinforced plastics, is used in applications requiring both high strength and lightweight properties. This is particularly common in aerospace and automotive applications.
- Biodegradable Plastics: With growing concerns over environmental sustainability, biodegradable plastics are being used for overmolding in industries where eco-friendly alternatives are needed, such as in packaging and consumer goods.
Designing for Manufacturability in Overmolding
When designing for overmolding, it is crucial to consider the DFM of the product. The design should facilitate efficient molding, minimize waste, and reduce costs. Key factors to consider include:
Draft Angles, Wall Thickness, and Other Key Design Factors
Draft angles are essential in overmolding designs to facilitate easy removal of parts from molds. Typically, a draft angle of 1 to 3 degrees is recommended. Additionally, uniform wall thicknesses are crucial to avoid warping, inconsistent cooling, or part defects. Sudden changes in thickness can lead to issues such as uneven material flow or differential cooling.
Other factors to consider include:
- Sharp Edges: These can interfere with material flow and bonding, leading to defects in the finished part.
- Parting Line: Careful attention to the placement of the parting line can prevent cosmetic issues on the final product.
Importance of Gate Design and Runner Systems
Gate design significantly affects material flow and bonding during overmolding. Proper gate placement ensures that the overmolding material flows evenly over the substrate, creating a uniform bond. Additionally, an optimal runner system is essential for directing material flow to the cavities and ensuring consistency throughout the molding process. Poor gate design can lead to defects like air pockets, incomplete fills, or weak bonds between the two materials.
The Role of Cavity Design in Overmolding
Cavity design plays a crucial role in ensuring uniform material distribution and achieving consistent part quality. When designing cavities, it’s important to consider the material’s flow behavior, cooling rates, and the potential for shrinkage. Multi-material molding also requires specialized molds with inserts or cores that can withstand different processing temperatures for each material. An optimized cavity design helps to avoid warping, uneven bonding, or material wastage during the molding process.
Cost Considerations in Overmolding
Overmolding offers distinct benefits in terms of material performance and part functionality, but the production costs can be higher than traditional molding techniques due to the complexity of the process. The need for custom tooling, multi-material molding, and specialized labor adds to the expense.
Tooling and Setup Expenses in Overmolding
Tooling and setup costs for overmolding are generally higher than those for single-material molding due to the complexity of the molds and the need for precise alignment between different material layers. Custom mold designs are often required, especially when the substrate and overmold materials have different flow characteristics, cooling rates, or shrinkage profiles.
In addition, overmolding may require precise control of molding parameters, which increases the setup time. Using standardized molds and reducing the need for custom tooling can help minimize upfront costs.
Material Costs and Their Impact on Overmolding Projects
Material selection is one of the most influential factors in the cost of overmolding. The price of raw materials varies widely based on their composition, performance characteristics, and availability. For example, silicone or rubber may be more expensive than thermoplastic materials but offer advantages in flexibility, durability, and biocompatibility.
In addition, multi-material systems can significantly raise the cost of raw materials. When considering material costs, material waste is also an important factor, especially when using complex multi-material molds. For some applications, selecting the most cost-effective materials that meet performance requirements can reduce material costs.
Benefits of Overmolding
Overmolding provides significant advantages in product design and manufacturing. Some of the key benefits include:
Enhanced Durability and Performance
Overmolding improves a part’s resistance to wear, environmental factors, and mechanical stress by combining materials with complementary properties. For example, the overmolding of a hard plastic substrate with a soft rubber coating can provide superior grip, shock absorption, and resistance to abrasion.
Cost-Effectiveness Solution for Manufacturing
Overmolding reduces the need for additional assembly processes, such as bonding or coating, which streamlines production and lowers labor costs. By integrating multiple materials in one molding cycle, it can offer more cost-effective solutions, especially for low-to-medium-volume production runs.
Allow Design Flexibility
Overmolding allows for greater design freedom, as it enables the combination of materials with different properties, such as hardness, flexibility, or conductivity. This results in products with improved ergonomics, and functionality.
Improved Aesthetics
Overmolding offers opportunities for adding textures, colors, or patterns to products, enhancing their visual appeal. The process can create seamless, visually attractive designs without the need for additional surface treatments or finishes.
Challenges in Overmolding
Bonding Challenges Between Substrates and Overmolded Materials
One of the primary challenges in overmolding is ensuring a strong bond between the substrate and the overmolded material. The difference in material properties—such as surface energy, texture, and chemical composition—can make bonding difficult. To achieve strong adhesion, the substrate surface is often treated (e.g., by using plasma treatment, flame treatment, or primers) before the overmolding process.
Overmolding with Complex Geometries
Complex geometries, such as intricate internal features or undercuts, can complicate the overmolding process. Best practices include careful mold design, use of inserts, and the choice of appropriate molding techniques that ensure optimal material flow and bonding in hard-to-reach areas. For particularly challenging geometries, a multi-shot molding approach may be necessary to ensure that all features are adequately formed and bonded.
Addressing Material Compatibility and Adhesion Issues
Material compatibility is a critical factor in the success of overmolding. Incompatible materials may not bond properly, leading to weak joints, premature failures, or delamination. A deep understanding of the materials’ chemical properties and how they interact during the molding process is essential to achieving a high-quality part.
Ensuring Consistent Overmolding Quality
Maintaining consistent quality throughout the overmolding process can be challenging, especially when working with different materials. Factors such as material flow, cooling rates, and pressure distribution must be carefully controlled to ensure uniformity. Regular process monitoring and quality checks, including visual inspection and testing, help in detecting defects and improving the consistency of the final product.
Overmolding vs. Other Molding Techniques
Overmolding vs. Injection Molding
| Aspect | Overmolding | Injection Molding |
|---|---|---|
| Material Combination | Two or more materials combined | Single material used |
| Manufacturing Process | Material molded over an existing substrate | Molten material injected into a mold |
| Part Functionality | Adds additional functionality | Basic structural properties |
| Design Flexibility | Creates multi-material and soft-touch components | Suitable for simpler single-material parts |
| Assembly Requirements | Reduces the need for separate assembly | May require additional assembly for multi-material designs |
| Typical Applications | Ergonomic handles, seals, protective covers, and medical components | High-volume plastic parts, housings, and standard components |
View our Precision Injection Molding Service.
Overmolding vs. Insert Molding
| Aspect | Overmolding | Insert Molding |
|---|---|---|
| Process | Adds a second material layer over an existing substrate | Injects material around a pre-placed insert |
| Material Integration | Bonds different materials, such as plastic with rubber or silicone | Encapsulates pre-formed inserts, such as metal parts or connectors |
| Main Purpose | Enhanced surface properties and user experience | Integrated components and structural reinforcement |
| Common Applications | Grips, seals, soft-touch components, and protective covers | Threaded parts, electrical connectors, and reinforced components |
View our Insert Molding Service.
| Aspect | Overmolding | Compression Molding |
|---|---|---|
| Process | Applies one material over an existing substrate | Compresses heated material into a mold cavity |
| Material Use | Combines two or more materials with different properties | Typically forms parts from a single material |
| Main Advantages | Emphasizes user experience and functional improvements | Improves strength, durability, and structural stability |
| Design Capability | Combines hard and soft materials in one component | Suitable for large, high-strength components |
| Common Applications | Grips, seals, consumer products, and components requiring enhanced surface properties | Automotive, aerospace, and heavy industrial parts |
View our Compression Molding Service.
Applications of Overmolding Across Industries
Automotive Industry: Enhancing Durability and Aesthetics
In the automotive sector, overmolding is widely used to create durable, lightweight, and aesthetically appealing parts. Overmolded automotive components, such as handles, switches, seals, and dashboards, combine functionality with a pleasing finish. Overmolding with materials like TPE or rubber can provide superior vibration dampening, water resistance, and ease of handling.
Medical Device: Safety, Sterility, and Functionality
Overmolding plays a crucial role in the medical device industry, where safety, sterility, and precision are paramount. Silicone overmolding, in particular, is commonly used in devices that require flexibility, biocompatibility, and resistance to harsh sterilization processes. Overmolded parts in medical devices, such as grips, seals, and gaskets, ensure both ease of use and patient safety.
Consumer Electronics: Better Grip and Protection
Overmolding in consumer electronics enhances the user experience by providing soft-touch surfaces, better grip, and added protection from environmental factors such as moisture or dust. Overmolded parts, such as smartphone cases, remote controls, and keyboards, offer improved ergonomics and durability, helping to extend the life of the product.
Read The Complete Guide to Low Pressure Overmolding for electronics parts
Packaging: Enhancing Product Design and Usability
Packaging applications benefit from overmolding by improving both the aesthetic and functional qualities of the product. Overmolded packaging, such as caps, containers, and lids, can feature intricate textures or colors, providing branding opportunities and enhancing the overall user experience. Moreover, overmolding can improve the sealing capabilities and resistance to tampering, which is critical in the food and pharmaceutical industries.
Industrial Equipment: Durability Meets Performance
Industrial equipment often requires overmolded components for enhanced durability and performance. Overmolding with materials such as rubber, silicone, or TPE creates parts that are not only strong and reliable but also resistant to the harsh environments commonly found in industrial settings. Examples include protective covers, gaskets, seals, and ergonomic handles for heavy machinery or tools.
Choosing an Overmolding Service Provider
Key Factors to Consider When Selecting an Overmolding Partner
Selecting the right overmolding service provider is critical to ensuring a successful manufacturing process. Key factors to consider include the provider’s experience in the specific type of overmolding required, their technical capabilities, and their ability to meet production timelines. It’s also essential to assess the provider’s quality assurance practices and their commitment to meeting regulatory standards, especially in industries like medical devices and automotive.
Evaluating Experience, Expertise, and Technical Capabilities
Experience and expertise are paramount in selecting a reliable overmolding partner. A provider with a track record of successful overmolding projects in your industry will be better equipped to handle the unique challenges of multi-material molding, such as material compatibility, bonding techniques, and precision molding.
In addition, technical capabilities such as mold design, material selection, and process optimization are essential for achieving high-quality results. Providers should also have access to the latest overmolding equipment, including multi-shot molding machines and advanced inspection tools.
Understanding Lead Times and Production Capabilities in Overmolding
Lead times are an important consideration in selecting an overmolding partner. The complexity of the overmolding process, including custom tooling and multi-material molding, can result in longer lead times compared to single-material molding. It’s essential to work with a partner who can provide accurate and reliable timelines and has the production capacity to meet both short-run and high-volume demands.
Additionally, assess the provider’s ability to scale production, whether for prototyping, small batch runs, or mass production. This flexibility will ensure that your overmolding project can be successfully executed at any production scale.
How to Work with Your Overmolding Supplier for Optimal Results
Effective communication and collaboration are key to achieving optimal results in overmolding projects. Work closely with your supplier to establish clear expectations regarding design specifications, material selection, production timelines, and quality standards. By fostering a transparent and cooperative relationship, you can ensure that any potential challenges are addressed early, and that the project proceeds smoothly from start to finish.
Regular updates and feedback loops throughout the production process will help ensure that any necessary adjustments are made promptly, ensuring that the final product meets all functional, aesthetic, and performance requirements.
Submit Your Overmolding Request
To summarize, overmolding is a versatile and advanced manufacturing technique that offers numerous benefits, including enhanced part functionality, improved material properties, and the ability to combine multiple materials into a single component. Despite its complexity and associated costs, overmolding is increasingly becoming a preferred choice across industries such as automotive, medical devices, electronics, and packaging due to its ability to create superior, multi-functional parts.
By understanding the materials used, design considerations, and the key challenges involved, you can make informed decisions to optimize the overmolding process and ensure high-quality, cost-effective results. Selecting the right overmolding partner is crucial to success, as it ensures the efficient production of high-performance parts that meet both design specifications and market demands.
