EPDM Rubber Manufacturing Guide

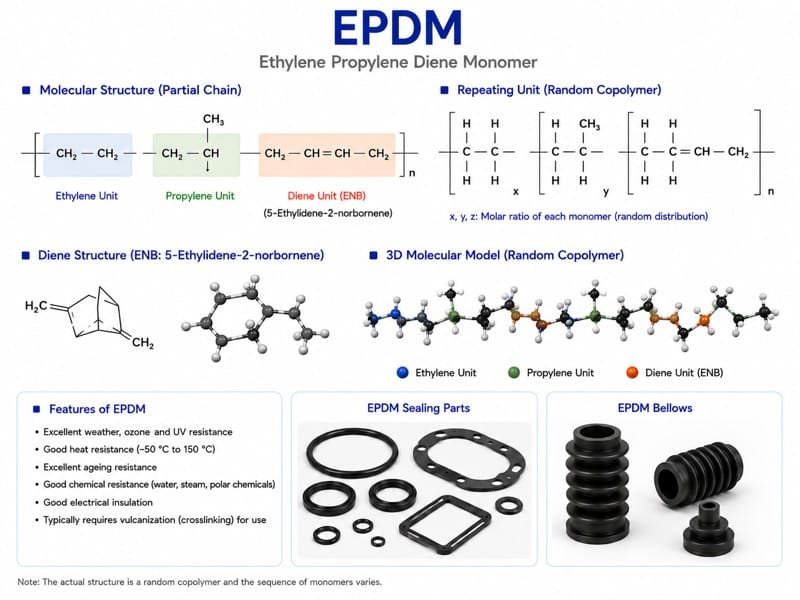

What Is EPDM – What Does EPDM Stand For?
EPDM stands for Ethylene Propylene Diene Monomer.
It is a synthetic rubber designed to withstand harsh outdoor environments and prolonged exposure to weather, ozone, moisture, and sunlight. Unlike many elastomers that degrade over time, EPDM maintains its flexibility and sealing performance even after years of environmental exposure.
Because of its durability and cost-effectiveness, EPDM is one of the most widely used rubber materials for sealing and weatherproofing applications.
Different Types of EPDM Rubber
General-Purpose EPDM
Designed for standard sealing and weatherproofing applications requiring good flexibility and environmental resistance.
High-Temperature EPDM
Formulated to provide improved performance in elevated temperature environments.
FDA-Compliant EPDM
Manufactured for food-contact and potable water applications where regulatory compliance is required.
Sponge EPDM
A lightweight cellular material commonly used for weather seals, cushioning, and environmental sealing applications.
Properties and Features of EPDM Rubber
EPDM combines excellent environmental resistance with good flexibility and cost efficiency, making it one of the most popular sealing materials available.
Physical Properties of EPDM Rubber
- Excellent weather resistance
- Outstanding UV resistance
- Excellent ozone resistance
- Excellent water resistance
- Good flexibility
- Good compression set resistance
- Good vibration damping
- Good aging resistance
- Long outdoor service life
- Cost-effective material
Chemical Properties
- Water: Excellent
- Steam: Excellent
- Dilute Acids: Good
- Dilute Alkalis: Good
- Ozone: Excellent
- UV Exposure: Excellent
- Brake Fluids: Good
- Oils and Greases: Poor
- Fuels: Poor
Mechanical Properties of EPDM Rubber
- Density: 0.85 – 1.20 g/cmÂł
- Tensile Strength: 7 – 21 MPa
- Elongation at Break: 200 – 600%
- Shore Hardness: 30A – 90A
- Tear Resistance: Good
- Compression Set: Good
- Flexibility: Good
Thermal Properties
- Continuous Service Temperature: -40°C to 120°C
- Special Grades: Up to 150°C
- Good low-temperature flexibility
- Excellent thermal aging resistance
Electrical Properties of EPDM Rubber
- Good electrical insulation
- Good dielectric strength
- Suitable for outdoor electrical sealing applications
Advantages & Disadvantages of EPDM Rubber
Understanding the strengths and limitations of EPDM helps determine whether it is the right material for a specific application.
Advantages of EPDM Rubber
Excellent Weather Resistance
EPDM is highly resistant to sunlight, ozone, rain, and environmental aging. It is widely used for outdoor applications because it can maintain flexibility and sealing performance for many years.
Outstanding Water and Steam Resistance
EPDM performs exceptionally well in wet environments and is commonly used for water systems, weather seals, and outdoor equipment exposed to moisture.
Good Temperature Resistance
EPDM can operate across a broad temperature range while maintaining flexibility and durability, making it suitable for automotive and industrial applications.
Cost-Effective for Sealing Applications
Compared with higher-cost elastomers such as silicone or Viton, EPDM provides excellent performance at a more economical price point.
Long Service Life
Its resistance to environmental degradation helps reduce maintenance and replacement frequency in outdoor applications.
Disadvantages of EPDM Rubber
Poor Resistance to Oils and Fuels
EPDM is not recommended for applications involving gasoline, petroleum oils, or hydrocarbon-based fluids. Materials such as NBR or Viton are usually better choices.
Limited Chemical Resistance
While EPDM performs well against water and many mild chemicals, it is not suitable for all aggressive chemical environments.
Moderate Abrasion Resistance
For applications involving heavy wear or repeated sliding contact, polyurethane may provide better performance.
EPDM Rubber Manufacturing Process
EPDM components can be manufactured using several production methods depending on part design and production volume.
EPDM Rubber Applications
EPDM is commonly used in applications requiring weather resistance, water resistance, and long-term outdoor durability.
Typical applications include:
- Automotive weather seals
- Window and door seals
- Roofing membranes
- Electrical enclosure seals
- HVAC sealing systems
- Water system gaskets
- Outdoor equipment seals
- Construction sealing components
- Cable protection products
- Industrial gaskets
Materials Similar to EPDM and How to Choose
EPDM vs Silicone
EPDM vs NBR (Nitrile Rubber)
EPDM vs Viton (FKM)
EPDM vs Natural Rubber
EPDM vs Neoprene
EPDM Rubber Material FAQs
Is EPDM a Good Material for Outdoor Applications?
Yes. EPDM is one of the most commonly used rubber materials for outdoor applications because it offers excellent resistance to sunlight, ozone, rain, and weathering. It can maintain flexibility and sealing performance for years.
Does EPDM Crack or Harden Over Time?
EPDM is highly resistant to aging and environmental degradation. Unlike many rubber materials, it is less likely to crack, harden, or become brittle when exposed to sunlight, ozone, and changing weather conditions over long periods.
How Long Does EPDM Typically Last Outdoors?
The service life depends on the application and environment, but EPDM is known for its long-term durability outdoors. In many sealing and weatherproofing applications, it can provide reliable performance for many years with minimal maintenance.
Does EPDM Remain Flexible in Cold Weather?
Yes. EPDM maintains good flexibility at low temperatures and continues to perform well in cold climates. This helps prevent sealing failures caused by hardening or cracking during winter conditions.
Is FDA-Compliant EPDM Available?
Yes. FDA-compliant EPDM grades are available for applications involving food contact and potable water systems. These materials are formulated to meet specific regulatory requirements while maintaining the performance benefits of standard EPDM.
What Hardness Options Are Available for EPDM Rubber?
EPDM is available in a wide range of hardness levels, typically from 30 Shore A to 90 Shore A. Softer grades provide better flexibility and sealing performance, while harder grades offer improved durability and resistance to deformation.
Can EPDM Be Manufactured in Different Colors?
Yes. EPDM can be produced in a variety of standard and custom colors depending on the application requirements. Black is the most common option, but other colors are often used for identification, branding, or aesthetic purposes.
What Temperature Can EPDM Withstand?
Standard EPDM typically operates between -40°C and 120°C while maintaining flexibility and sealing performance. Special formulations can withstand higher temperatures for specific applications.
