In many products we use every day — from backpack buckles and toy battery covers to mechanical joints — snap-fit connections play a quiet but important role. They make assembly simple, reduce parts count, and improve the overall user experience.
Over the years, we’ve designed and refined many different types for various client projects. In this case study, we showcase four common yet highly practical snap-fit designs we have developed: Cantilever Snap-Fit, U-Shape Snap-Fit, Annular Snap-Fit, and Torsion Snap-Fit.
Case 1: Cantilever Snap-Fit Joint

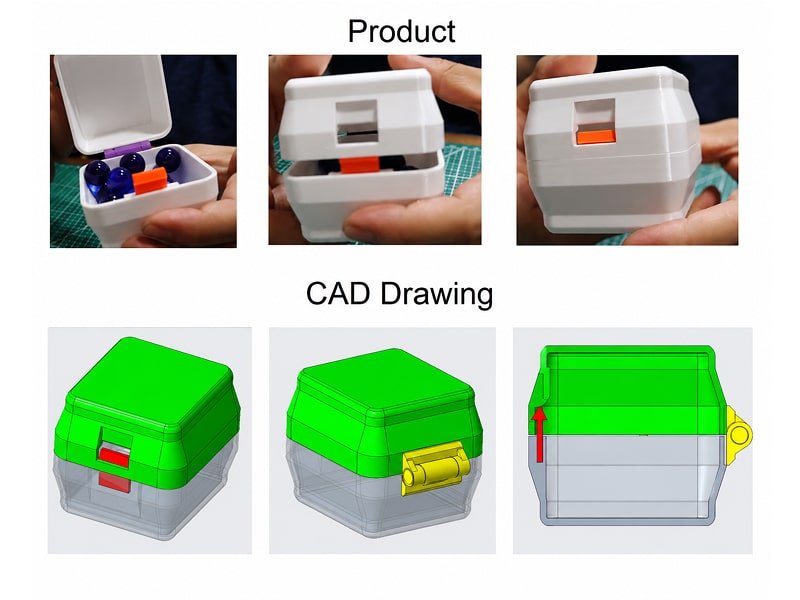

This type of buckle achieves secure locking through two flexible cantilever arms (elastic locking tabs) that smoothly slide into corresponding notches. The design enables extremely convenient and tool-free assembly of the model. To disassemble, simply press the spring tabs exposed in the notches for quick and effortless release.
The mechanism delivers a satisfying, smooth clicking action that feels premium and surprisingly stress-relieving — users often find the operation addictive and enjoyable. With slight modifications to the geometry, this prototype mechanism seamlessly transforms into the irregular-shaped backpack buckles commonly seen in everyday life. It offers rapid closure and instant unlocking, making it highly versatile and widely applied across various consumer products.

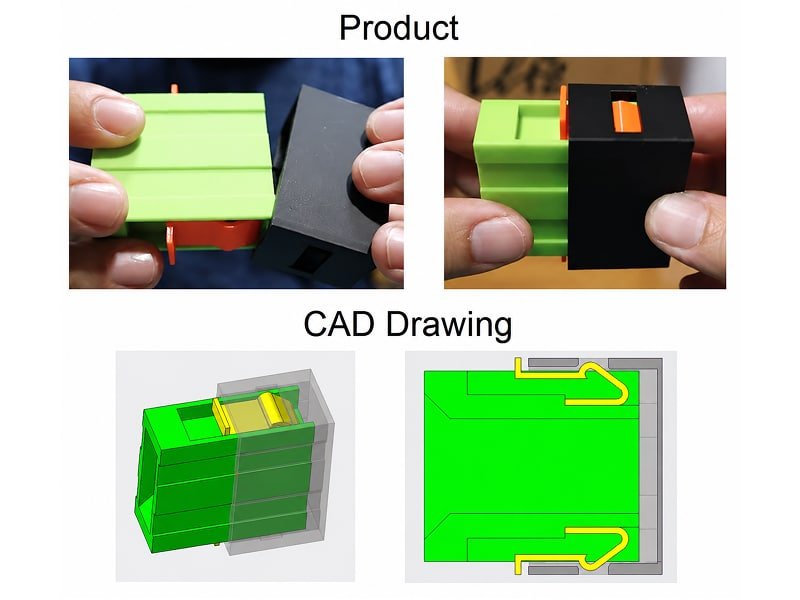

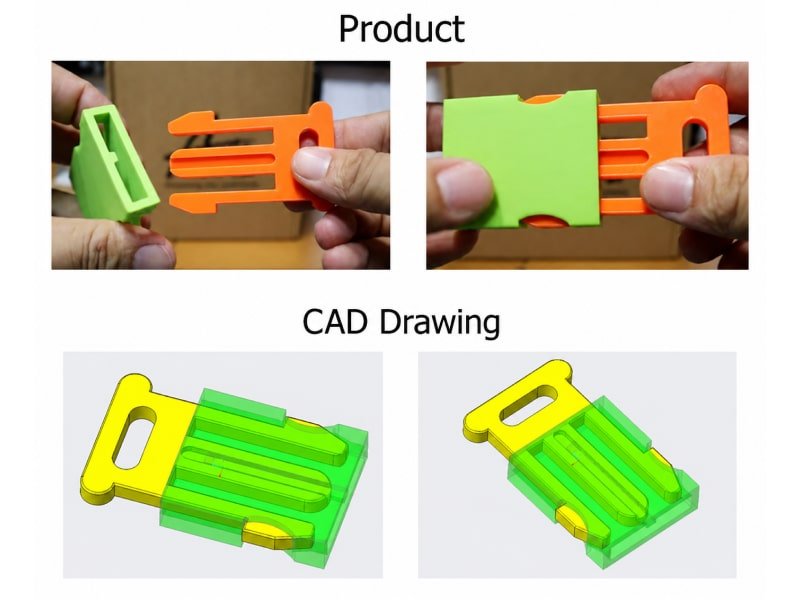

Other Cantilever Snap-Fit Joint we made before
The load-bearing strength after closure is highly tunable. This primarily depends on the precise geometry of the locking tabs and the matching angle of the engagement notches. By optimizing these parameters, we can flexibly adjust the retention force to match your specific model requirements perfectly.
Case 2: U-Shaped Snap Fit

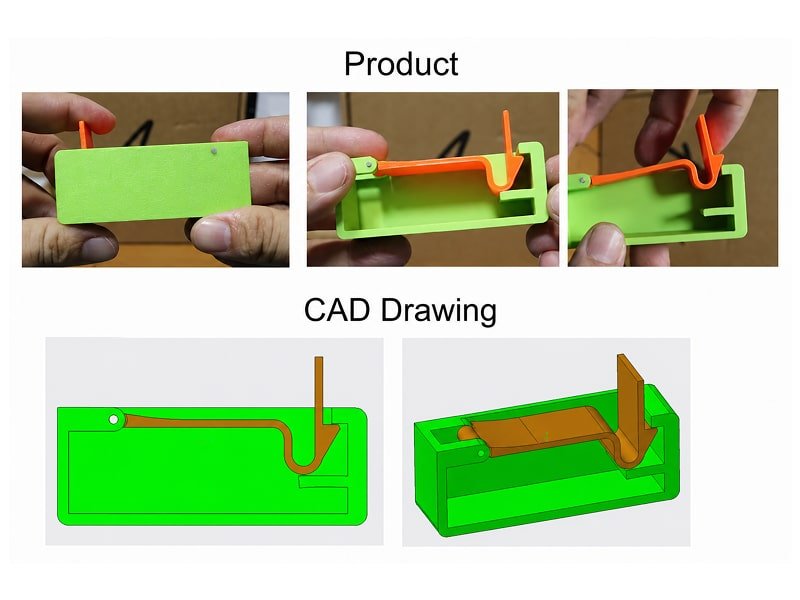

The U-Shape snap fit is another common design type in real-world applications. This is often found in the battery compartment covers of many toy cars. In this solution, the snap-fit mechanism is fully integrated with the lid itself. Simply pressing the cover down into place simultaneously achieves secure locking. To unlock and open the lid, users simply push or flex the protruding tab in the opposite direction.
The structure is remarkably simple, highly reliable, and extremely user-friendly, it often used in applications that require frequent opening and closing.
Case 3: Annular Snap-fit Joints

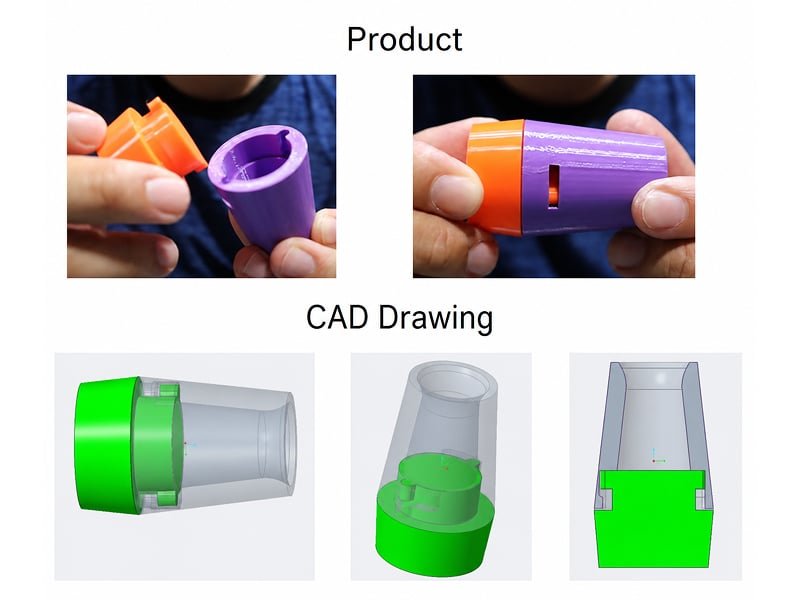

This type of snap-fit features a continuous circular locking ring (annular bead) that snaps securely into a corresponding groove, creating a strong, uniform connection around the entire circumference.
The design consists of a flexible outer lip or inner ring that deflects slightly during assembly and then snaps back into the mating groove for reliable locking. The result is a clean, tool-free assembly with excellent retention strength and good resistance to axial pull-out forces.
Our optimized design achieves an excellent balance between assembly force, retention strength, and long-term durability, helping clients reduce part count, simplify assembly, and improve overall product quality.
Case 4: Torsion Snap Fit

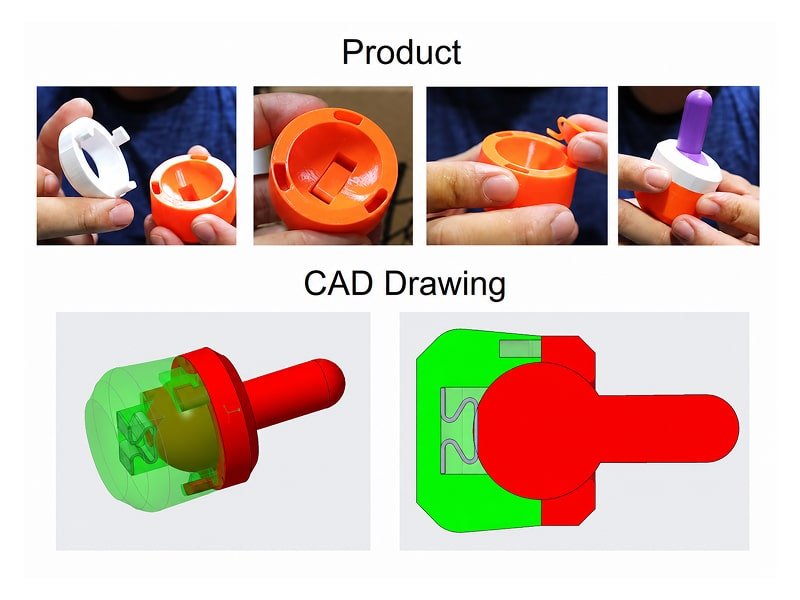

This torsion snap-fit locks by rotating the two parts to engage the internal buckles with each other. A simple counterclockwise rotation quickly unlocks the joint.
To address the structure’s limitations of relatively weak longitudinal strength and fragile protruding locking points, we optimized the design for injection molding by enlarging the internal clearance cavities between parts and adding spring-like protrusions at the bottom. This increases friction on the spherical joint area and securely locks the upper section.
We continue to explore and improve snap-fit mechanisms to provide effective fastening options for different product needs.
