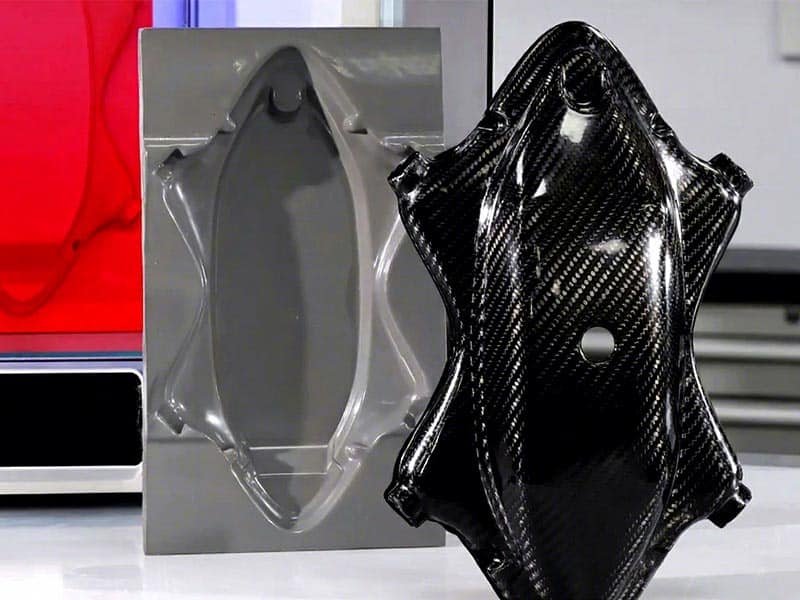

Carbon Fiber Injection Molding for Lightweight Metal Replacement Parts

Carbon Fiber Reinforced Polymers (CFRP) are increasingly selected for metal-replacement projects in automotive, aerospace, and high-end consumer electronics. Integrating carbon fibers into base resins like PA, PEEK, or PPS drastically improves tensile strength and structural modulus while reducing part weight.

However, carbon fiber injection molding is complex. The addition of rigid fibers fundamentally alters the rheological behavior of the polymer melt. Without specialized tooling strategies and process control, structural parts frequently suffer from severe cosmetic and mechanical defects.

At Erye, we mitigate these risks during the early stages of Design for Manufacturability (DFM) and through precise production controls.

Carbon Fiber and Base Resins Selection

During the initial project phases, we must evaluate whether a carbon fiber compound can successfully replace aluminum or magnesium die-castings and identify the exact material formulation required.

1. Short Fiber (SCF) vs. Long Fiber (LCF)

The choice between short and long carbon fiber depends on the balance between mechanical requirements and manufacturing complexity:

• Short Carbon Fiber (SCF): Typically contains fibers under 1 mm in length. SCF compounds flow easily through standard runners and gates. However, structural reinforcement is limited compared to LCF. Best suited for thin-walled parts (<1.5mm).
• Long Carbon Fiber (LCF): Selected for high-impact metal replacement. Retains fiber lengths of 2 mm to 10 mm within the molded part. LCF provides exceptional impact strength, creep resistance, and dimensional stability under load. However, the high fiber length increases melt viscosity exponentially. Erye utilizes low-compression screw designs, widened gates, and radiused runners to preserve the 2mm–10mm fiber length in the final part.

2. Base Resin Selection

Carbon fiber acts as the reinforcement, but the base resin determines the chemical, thermal, and environmental resistance of the component. Common engineering combinations include:

• CF/Nylon (PA66/PA12): Exceptional tensile strength and toughness; heavily utilized for automotive structural brackets. However, moisture absorption must be factored into dimensional shrinkage calculations.
• CF/PPS (Polyphenylene Sulfide): High chemical resistance and flame retardancy, with minimal post-molding shrinkage. Ideal for under-hood automotive fluid systems.
• CF/PEEK (Polyetheretherketone): Continuous operating temperatures exceeding 240°C with extreme mechanical modulus. Frequently selected as a direct replacement for titanium or aluminum in aerospace and medical components.

Carbon Fiber Injection Molding Challenges and Solutions

1. Structural Anisotropy and Weld Line Weakness

Unlike isotropic unreinforced plastics, CFRP parts exhibit highly direction-dependent (anisotropic) mechanical properties. During the injection phase, carbon fibers naturally align parallel to the flow direction.

The most critical failure point occurs at weld lines—where two split melt fronts meet. Because the rigid fibers cannot easily cross the interface of the converging fronts, the weld line is left completely unreinforced, retaining only the strength of the base resin. In a component filled with 40% carbon fiber, a poorly managed weld line can cause a structural strength reduction of up to 60% at that specific junction.

Erye’s Engineering Solutions:

• We utilize Moldflow simulation to map precise fiber orientation before steel cutting. Gates are strategically positioned to push weld lines to low-stress or non-functional areas of the part.
• For large or complex components, we employ hot runner systems with sequential valve gates to control the sequential opening of nozzles, eliminating weld lines altogether through continuous single-direction filling.
• We design overflow pockets adjacent to critical structural zones to trap the initial, cooled melt fronts, ensuring the final bonding area within the part cavity contains hot, well-blended material.

2. “Floating Fiber” Defect and Surface Degradation

Achieving a cosmetic finish (Class-A surface) is notoriously difficult with carbon fiber compounds. A common defect is “floating fiber,” where silvery, fibrous streaks appear prominently on the part surface.

This occurs because carbon fibers and the polymer matrix have drastically different thermal characteristics. As the melt contacts the cold mold wall, the resin freezes instantly, forming a skin layer. The rigid fibers, driven by shear stress and unable to shrink at the same rate as the resin, break through the frozen layer and become exposed on the exterior surface. This results in a rough texture, localized gloss variation, and poor paint adhesion.

Erye’s Process Control:

• To completely eliminate floating fibers in aesthetic components, Erye utilizes Rapid Heat Cycle Molding (RHCM) technology. By using superheated steam or dynamic electrical heating, we raise the mold surface temperature above the polymer’s glass transition temperature during the filling phase. This keeps the resin liquid longer, forcing the fibers to remain embedded beneath a rich resin skin before cold water rapidly cools the tool for ejection.
• We implement multi-stage injection profiles, accelerating the melt speed past the gate to maintain a stable shear rate, which helps prevent fiber segregation near the surface.

3. Accelerated Tool Wear and Barrel Erosion

Carbon fiber acts as a highly abrasive medium during the high-pressure filling phase. The rigid, sharp fiber segments exert extreme friction against the injection molding machinery and tool steel.

The most severe erosion occurs in high-velocity zones, specifically at the injection nozzle, check valves, runner turns, and restricted gate inserts. Standard tool steels degrade rapidly under these conditions, leading to gate enlargement, parting-line flash, and dimensional drift within a few thousand cycles.

Erye’s Tooling Standards:

• Erye builds mold bases and cores using premium tool steels, such as H13 or premium grade powder metallurgy steels, hardened through uniform vacuum heat treatment to 52–56 HRC.
• For sub-gates or edge gates where shear concentration is highest, we engineer sub-assembly modules with replaceable tungsten carbide or specialized PVD-coated inserts. If wear occurs over high-volume production, these inserts can be replaced quickly without rebuilding the main tool core, minimizing downtime and protecting part tolerances.
• Our production equipment is configured with bimetallic liners and specialized screws to withstand long-term fiber abrasion without introducing iron contamination into the melt.

Is Carbon Fiber Right for Your Project?

Carbon fiber reinforced plastics are commonly selected when weight reduction and structural performance are more important than material cost. Compared with unfilled engineering plastics, carbon fiber compounds provide higher stiffness, lower thermal expansion, and improved dimensional stability.

Carbon fiber injection molding is often a good choice for:

• Metal replacement projects
• Lightweight structural components
• High-stiffness applications
• Automotive and aerospace parts
• Industrial equipment exposed to repeated loads

However, carbon fiber may not be the best option for highly cosmetic parts, flexible components, or cost-sensitive products. In these cases, glass fiber reinforced plastics or standard engineering resins may provide a better balance between performance and cost.
